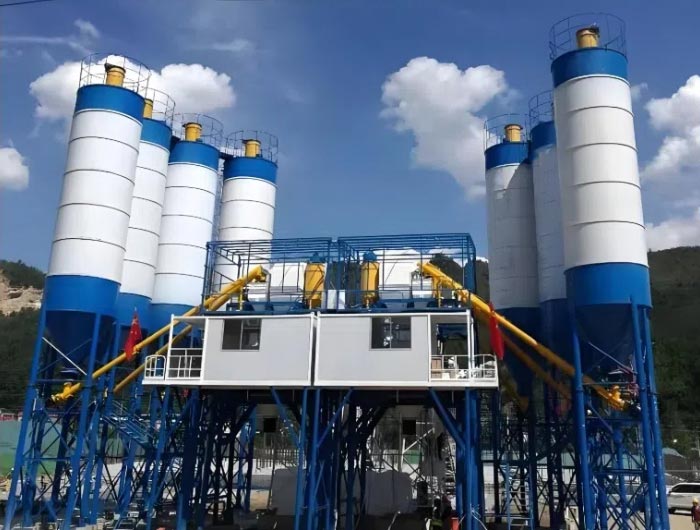

Dry batch concrete plant
Production capacity: 25-240 m³ per hour
Concrete mixer option：500/750/1000/1500/1500/2000/3000/4000L
Applications
- Remote areas: suitable for sites with inconvenient transportation.
- Special projects: such as tunnels, bridges and other projects that require high-quality concrete.
- Prefabricated components: used to produce prefabricated concrete components.
Main features
- Dry mixing: all materials are mixed in dry state in the mixing plant to avoid early hydration.
- Flexible transportation: dry concrete is easy to be transported over long distances, suitable for remote or inconvenient sites.
- On-site water addition: Water is added to the mix upon arrival at the site to ensure concrete performance.
- Quality control: Stable concrete quality is ensured through precise batching and mixing.
Why choose AGICO’s dry batch plant
Manufacturing Experience
40+ years
Patents
160+
Exported nations
170+
Certificates
ISO9001, ISO 14001, CE
High-performance equipment, stable and reliable
As a manufacturer of dry batch concrete plant, we specialize in providing customers with high-performance, stable and reliable production equipment. Our mixing plant adopts advanced computerized control system and precise metering technology, which ensures accurate proportioning and stable quality of each batch of concrete. The core components are made of international famous brands, which ensures high efficiency and low failure rate, providing customers with long-lasting and reliable production guarantee.
Modularized Design, Flexible Adaptation
Our dry batch concrete plant adopts modular design, which can be flexibly configured according to customers’ needs to meet different scales and types of production requirements. Whether it is a small project or a large-scale project, our equipment can be efficiently adapted and provide customized solutions to help customers maximize production efficiency.
Energy saving and environmental protection, green production
We are committed to building energy-saving and environmentally friendly mixing plant equipment, reducing energy consumption and material waste through optimized design and advanced technology. The equipment adopts closed production mode, effectively reducing dust and noise pollution, in line with environmental protection requirements, to help customers realize the goal of green production.
Full service, worry-free cooperation
From equipment installation and commissioning to operation training, to after-sales maintenance, we provide customers with a full range of technical support and service guarantee. Our professional team is ready to respond to customer needs, to ensure the efficient operation of equipment, to help customers solve production problems, to achieve worry-free cooperation and long-term win-win situation!
AGICO Group has more than 40 years of experience in the development and production of mobile concrete batch plant, small batch plant, stationary concrete plant, wet mix batching plant, precast concrete plant, central concrete batch plant and other products. High quality and strict factory inspection of products are AGICO’s pursuit. All products of the Group have passed ISO9001:2008 international quality management system certification, EU CE certification and Customs Union CU-TR certification.
Equipment for dry concrete batch plant
The batching system consists of aggregate bins, cement silos and additive silos for the storage of various raw materials and is equipped with anti-clogging devices and dust removal equipment. The dosing unit ensures accurate proportioning of aggregates, cement and additives. The conveying system utilizes aggregate conveyors, cement conveyors and additive conveyors to deliver the raw materials to the mixer. The core equipment of the mixing system is the mixer, which is used to mix the raw materials in a dry state. The common types are double horizontal shaft mixer and vertical mixer. The automated control system realizes fully automatic batching, conveying and mixing operations, and the monitoring system ensures real-time tracking of the production process to ensure quality and efficiency.
Dedusting system reduces environmental pollution through bag filter or cyclone dust collector. The storage and packaging system includes finished product silos and packaging machines for storing and packaging dry mix concrete. Auxiliary equipment such as air compressors and water pumps provide the necessary support. Air compressors are used for pneumatic conveying and dust removal, and water pumps are used for equipment cleaning. Transportation equipment includes tank trucks or bagged transport vehicles to deliver finished concrete to the construction site.
Parameters of dry batch plant — small & large capacity / mobile & stationary solutions
| Theoretical productivity(m³/h) | 25m³ | 35m³ | 50m³ | 60m³ | 75m³ | 90m³ | 120m³ | 180m³ | 240m³ | 300m³ |
| Standard discharge height (m) | 1.5-3.8 | 1.6-3.8 | 2.7-3.8 | 3.8 | 2.7-3.8 | 3.8 | 4 | 4 | 4.2 | 4.2 |
| Working cycle time (s) | 72 | 72 | 72 | 60 | 72 | 60 | 60 | 60 | 60 | 60 |
| Overall dimension (mm)(LXWXH) | 11693x13060x17245 | 12922x13000x17245 | 14950x17840x17245 | 36500x11130x20400 | 15950x18840x17245 | 51093x19100x21600 | 55885x20200x21600 | 59811x20660x23700 | 56000x22000x21000 | 57000x25000x23000 |
| Total installed capacity(kw) | 50.25 | 75 | 115 | 105 | 120 | 145 | 210 | 260 | 330 | 370 |
| Concrete mixer | 500L | 750L | 1000L | 1000L | 1500L | 1500L | 2000L | 3000L | 4000L | 5000L |
| Batching machine | 1200L | 1200L | 1600L | 1600L | 2400L | 2400L | 3200L | 4800L | barn-type | barn-type |
| Silo capacity(m³) | 3.5 | 3.5 | 5 | 12 | 15 | 15 | 18 | 25 | 35-50 | 35-50 |
| Air compressor model | 1.0-7 | 1.0-7 | 1.0-7 | 1.5-7 | 1.0-7 | 1.8-7 | 1.8-7 | 1.8-7 | 1.8-7 | 1.8-7 |
| Rated exhaust volume(m³/min) | 1.67 | 1.67 | 1.67 | 1.67 | 1.85 | 1.67 | 1.67 | 1.67 | 1.67 | 1.67 |
| Rated exhaust pressure(MPa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Motor power (KW) | 2.2 | 2.2 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 | 18.5 | 18.5 |

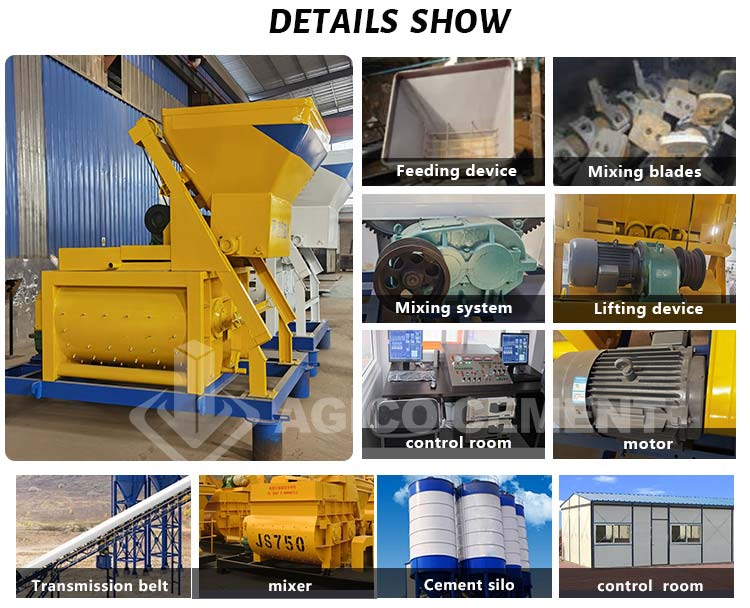

Customize your dry concrete batch plant with our professionalists
The key components of AGICO Cement’s dry batch concrete plant are all well-known brands at home and abroad, such as high-precision sensors, high-efficiency vibrators, automation control system and so on, to ensure the stable and reliable performance of the plant. The advanced equipment not only improves the production efficiency, but also reduces the failure rate and ensures the continuity and stability of production.
What is a dry batch concrete palnt
A dry batch concrete plant is a specialized plant for producing dry mix concrete. Dry batch concrete means that dry materials such as cement, aggregates (e.g. sand, stone) and additives are mixed proportionally, but no water is added, and then water is added and mixed for use after transportation to the construction site.
Cost of dry batch plant
The initial investment of dry mix concrete mixing plant is high, but the long-term cost can be reduced through rational planning and operation management. Small mixing plants are suitable for small-scale projects with an investment of about US$140,000-280,000; large mixing plants are suitable for large-scale production with an investment of about US$700,000-1.1 million.
| Cost Type | Small Mixing Plant | Medium Mixing Plant | Large Mixing Plant |
| Equipment Cost | 70,000−210,000 | 210,000−420,000 | 420,000−700,000 |
| Installation & Infrastructure Cost | 42,000−98,000 | 70,000−140,000 | 112,000−210,000 |
| Annual Operating Cost | 42,000−112,000 | 70,000−168,000 | 140,000−280,000 |
Differences between dry concrete batch plant & wet concrete batch plant
| Comparison item | Dry Concrete Batch Plant | Wet Concrete Batch Plant |
| Mixing method | Only dry materials such as cement and aggregates are pre-mixed, and water is added during transportation or construction | All raw materials (including water) are fully mixed in the plant |
| Finished product status | Dry material mixture, need to add water to mix during construction | Wet concrete, can be used directly |
| Applicable Scenarios | Projects requiring long-time storage or long-distance transportation | Projects requiring long-time storage or long distance transportation |
| Complexity of equipment | Simple equipment, low investment | Complex equipment, high investment |
| Quality control | Additional water is needed during construction, and quality control is more complicated | Concrete quality is stable and easy to control |
| Transportation requirements | Transportation of dry materials, lower transportation requirements | Wet concrete transportation, need to use mixer truck to maintain fluidity |
| Construction efficiency | On-site mixing with water, low efficiency | Direct use, high construction efficiency |
| Environmental friendliness | More dust during transportation, less environmental protection. | Wet material transportation, less dust, better environmental protection |
| Storage time | Dry material can be stored for a long time | Wet concrete needs to be used as soon as possible, short storage time |

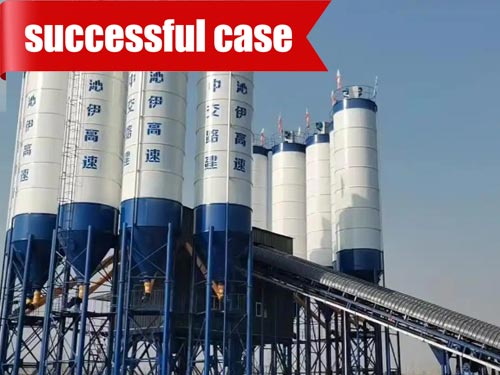

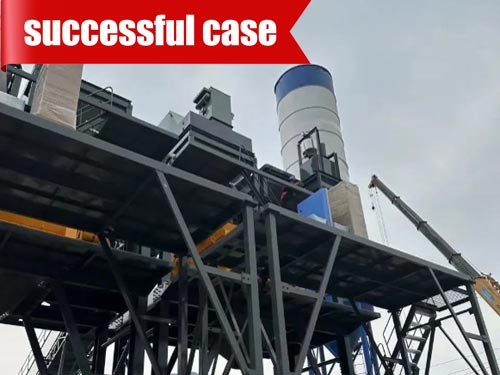

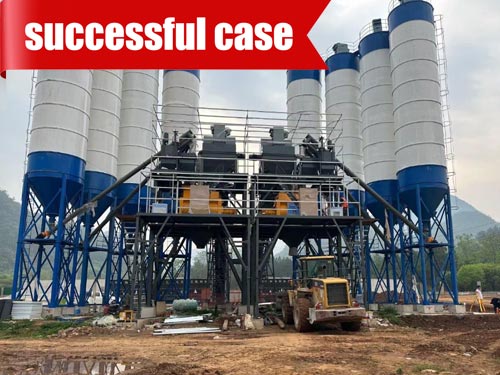

See the successful case of AGICO’s dry batch plant
FAQ
What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
What is your terms of delivery?
EXW, FOB, CFR, CIF. We have a very good cooperation in shipping logistics, and the price is low. Not only is our product price advantageous, but so is our logistics price.
How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. We have the goods in stock and they will be shipped from the factory within three days. We will book the warehouse after you pay the advance payment.
What is the warranty of our machine?
Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one. And we provide videos for machine install and operation.
What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Do you test all your goods before delivery?
Yes, we have 100% test before delivery. And we will attach our inspect report for every machine. 7
Do you Preferred provide wear parts for transacted clients? Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
