Enclosed Concrete Production
Eco-Friendly Concrete Batch Mixing Plant
Engineer dust, noise, material loss and wash-water control into the plant layout—without separating environmental equipment from production performance.
✓
Enclosed material flow
Control exposed transfer points
✓
Dust collection
Match extraction to each source
✓
Noise planning
Isolate and enclose key equipment
✓
Wash-water strategy
Plan collection and reuse routes
Eco-Friendly Plant Types
Choose the Environmental Architecture for the Actual Site
1
Targeted Dust-Control Plant
Enclose high-emission transfer points while retaining open maintenance access.
2
Semi-Enclosed Mixing Plant
Protect aggregate transfer and the mixing tower for urban or boundary-sensitive sites.
3
Fully Enclosed Batch Mixing Plant
Use a coordinated building envelope, extraction and access plan where visual, dust and noise control are critical.
4
Eco Retrofit Package
Upgrade an existing plant with source capture, sealed chutes, filter access and wash-water routing.
5
Low-Noise Production Package
Combine equipment isolation, lined chutes, silencers and operating controls around sensitive receptors.
6
Water-Recovery Configuration
Plan channels, settlement, storage, reuse and sludge handling as part of the process layout.
Environmental Control Map
Control Emissions at the Source—Not Only at the Site Boundary
Select a production area to see its environmental risk and the engineering response that should be included in the plant scope.
Environmental Source
Aggregate Receiving
Dust is created during truck tipping, loader movement and bin charging.
AGICO Engineering Response
Control Strategy
Wind shields, covered receiving, controlled drop height, local extraction and housekeeping access.
Environmental Source
Conveying & Transfer
Open belts and transfer points can release fine material and create spill cleanup.
AGICO Engineering Response
Control Strategy
Covered conveyors, sealed transfer chutes, skirt design and serviceable collection points.
Environmental Source
Powder Storage
Silo filling and pressure imbalance require controlled venting and level protection.
AGICO Engineering Response
Control Strategy
Silo-top filters, pressure relief, level indication and tanker-filling procedures.
Environmental Source
Mixing & Discharge
Mixer charging and truck loading combine dust, noise and wash-down demand.
AGICO Engineering Response
Control Strategy
Enclosed tower, extraction, lined chutes, controlled doors and planned wash-water collection.
Environmental Source
Wash Water
Mixer and vehicle cleaning produce alkaline water and settled solids.
AGICO Engineering Response
Control Strategy
Collection channels, settling zones, reuse planning and accessible sludge removal.
Environmental Source
Noise Sources
Mixers, compressors, vibrators and vehicle circulation affect site boundaries.
AGICO Engineering Response
Control Strategy
Equipment isolation, enclosure, operating schedules and maintenance-led noise control.
Enclosure Strategy
Choose the Enclosure Level Around Site Sensitivity and Maintenance Access
A fully enclosed plant is not automatically the best answer for every site. The enclosure must preserve ventilation, inspection, filter service, truck access and safe replacement routes.
1
Targeted Enclosure
Cover receiving, conveyors and discharge where dust is generated.
2
Semi-Enclosed Plant
Combine enclosed material flow with accessible service areas.
3
Fully Enclosed Plant
Use an architectural shell where boundary impact and visual control justify it.
Original Model Data
Eco-Friendly Concrete Batch Mixing Plant Capacity Table
These original model values are retained for comparison. Final fan duty, enclosure, storage, water balance and installed power are confirmed against the selected environmental package and site conditions.
Environmental Systems
An Integrated Dust, Noise and Water-Control Package
1
Silo Vent Filters
Control displaced air during powder filling and protect silo pressure.
2
Transfer-Point Extraction
Capture fine material where conveyors, scales and chutes exchange product.
3
Mixer-Tower Collection
Extract charging and discharge dust close to the source.
4
Acoustic Enclosure
Reduce direct noise paths around mixers, compressors and vibrators.
5
Spill Containment
Use sealed chutes, skirting and accessible cleanup zones to reduce material loss.
6
Wash-Water Routing
Separate collection, settling, reuse and sludge-access areas in the layout.
7
Traffic Housekeeping
Plan wheel cleaning, paved routes and stockpile boundaries around actual vehicle movement.
8
Filter Maintenance Access
Provide platforms, isolation and replacement clearance so controls remain effective.
Lifecycle Performance
Environmental Equipment Must Stay Serviceable After Commissioning
Filter area, fan selection and enclosure alone do not guarantee lasting control. Inspection routes, differential-pressure checks, cartridge access, drainage cleaning and spare-parts planning determine whether the system remains effective during production.
✓
Daily
Inspect spills, drainage and visible emission points.
✓
Weekly
Check filter cleaning, seals, ducts and enclosure doors.
✓
Planned Service
Replace consumables and inspect fans, silencers and pumps.
✓
Seasonal Review
Adjust housekeeping and water management for weather conditions.
Plant and Project Evidence
Eco-Friendly Concrete Plant Configurations in Real Equipment Context
Use these views to compare enclosure depth, access, environmental equipment and project execution—not merely exterior appearance.

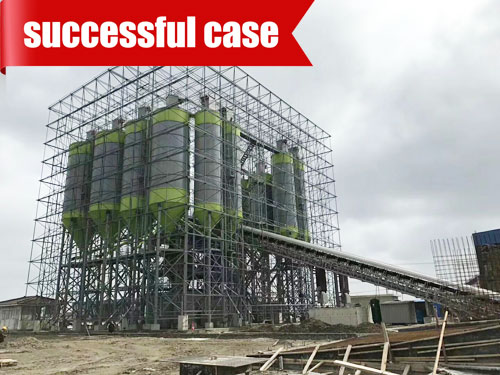

Enclosed Material Flow
Limit exposed drops and coordinate collection near emission sources.

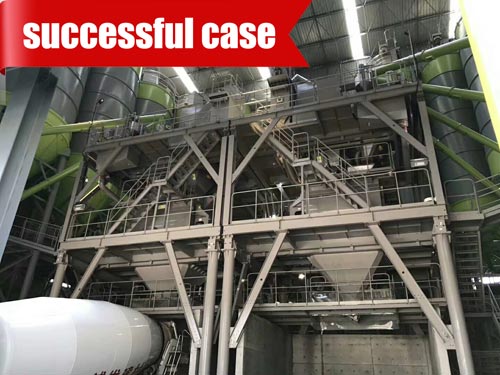

Mixing Tower Control
Integrate extraction, access and maintenance around the production core.

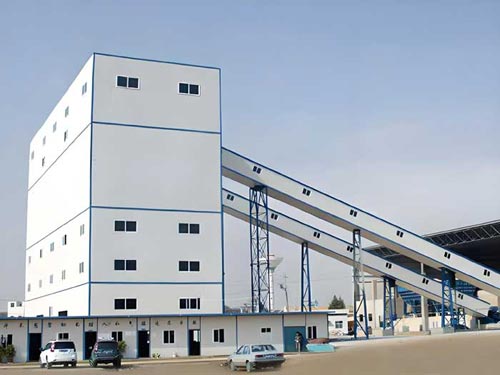

Full Plant Enclosure
Balance boundary control with ventilation, doors and service routes.

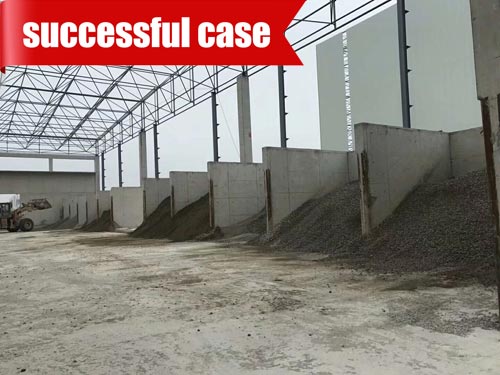

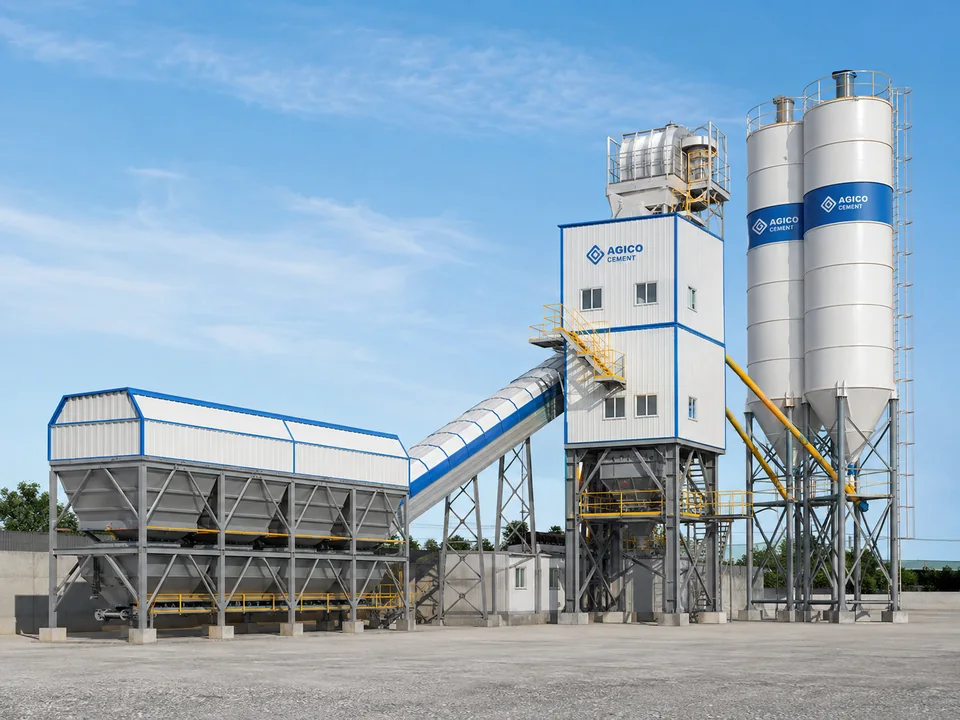

Covered Aggregate Transfer
Reduce wind exposure while keeping bins and conveyors maintainable.
Project Installation
Coordinate environmental systems with actual civil and traffic conditions.

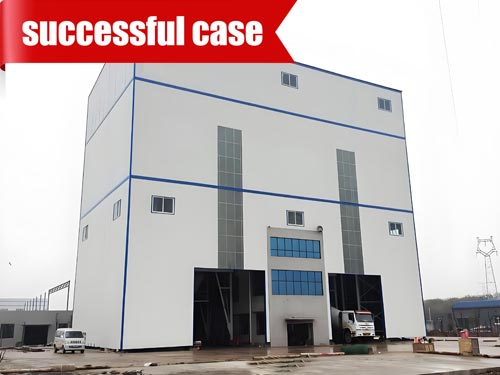

Sustainable Layout
Review energy, water and material-loss measures as one operating system.

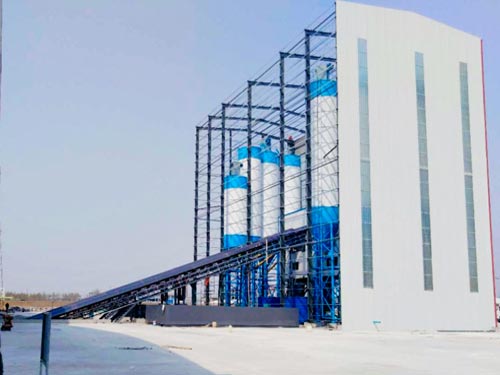

Engineering Design
Freeze enclosure, ducts, walkways and replacement routes before manufacture.

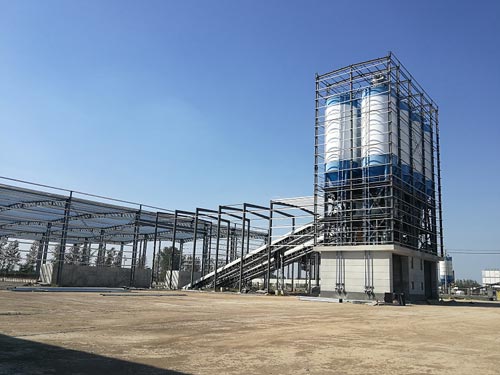

Equipment Scope
Separate core equipment, environmental package and local works in the quotation.

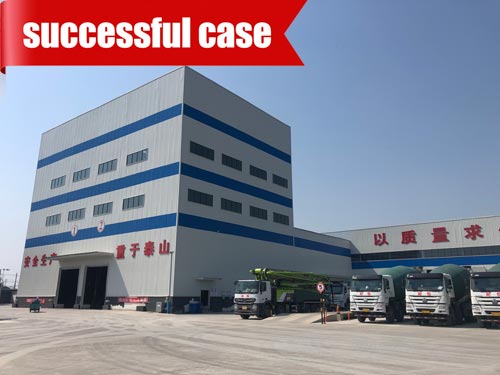

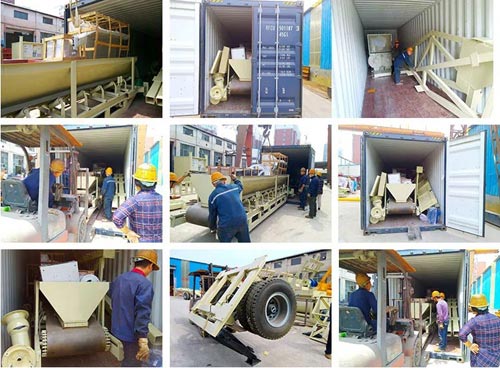

Overseas Reference
Use installed projects to verify layout and site-interface experience.
Customer Inspection
Support technical review with visible equipment and manufacturing evidence.
AGICO Supplier Capability
Coordinate Environmental Controls With the Complete Concrete Plant
AGICO develops the enclosure, material flow, extraction points, access platforms and control interlocks with the batching equipment rather than adding disconnected accessories after layout approval.
1
Source-by-Source Review
Map receiving, transfer, weighing, storage, mixing, discharge and wash-down risks.
2
Integrated Layout
Coordinate ducts, filters, walkways, doors, truck routes and maintenance clearances.
3
Factory Preparation
Prepare structures and interfaces before shipping to reduce site uncertainty.
4
Commissioning Support
Check airflow direction, interlocks, filter cleaning and operating procedures during startup.
Buyer FAQ
Eco-Friendly Concrete Plant Configuration Questions
No. Effective control also depends on capture points, airflow, filters, seals, housekeeping and maintenance. Site targets must be defined before engineering.
The selection depends on material transfer points, silo filling, mixer charging, discharge arrangement, enclosure volume and local site requirements.
A reuse system can be evaluated based on concrete recipes, water-quality limits, settling method, storage, climate and operating practice.
Typical measures include equipment isolation, enclosure, silencers, lined chutes, operating controls and maintaining bearings, gears and vibrators.
Provide boundary distances, prevailing wind, climate, local requirements, plant output, material delivery, truck routes, water balance and expected operating hours.
Potentially, but structural capacity, ventilation, equipment access, fire/safety rules and dust-extraction performance must be assessed first.
Request an Eco-Friendly Concrete Plant Configuration
Send the site plan, output, materials, boundary conditions and environmental priorities.
