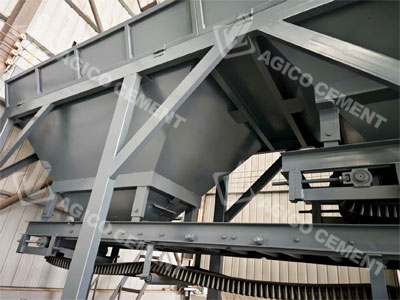

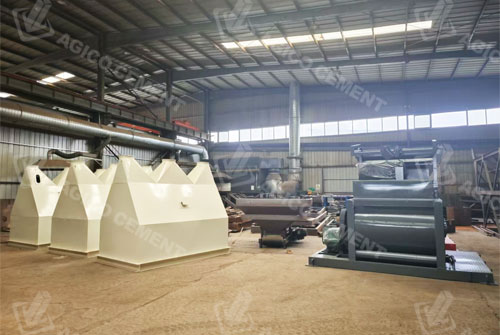

Introduction of aggregate bin
The automatic aggregate bin/aggregate hopper, when used in combination with mixers and metering devices, can form fully automatic or semi-automatic mixing plants, and is an ideal equipment for producing high-quality concrete.
The storage bin can automatically complete the quantitative distribution of at least two materials such as sand, gravel and cement. It features high batching accuracy, precise weighing, fast speed, and perfect control. It can also reduce the labor intensity of loading materials, and is easy to move and install, with flexible combination forms with mixers.

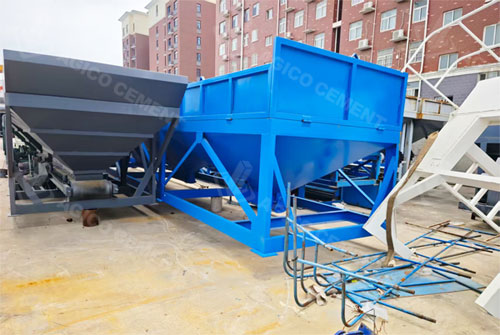

Aggregate bins for sale come in two-bin, three-bin, and four-bin models (customizable). They support feeding by belt conveyors or loaders and can be adapted to mix three or more types of sand and gravel materials, further ensuring the accuracy of the material mix ratio.
Why choose AGICO’s aggregate bin?
High-specification materials & precision processing

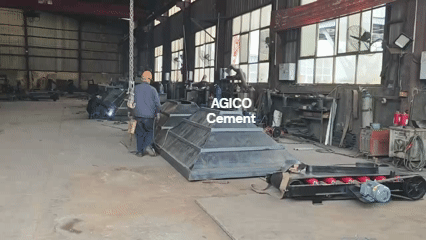

The key material and conveying components of the aggregate storage bin are all made of high-strength wear-resistant steel. It is formed through CNC cutting and precise welding processes.
The inner walls of the bin are smooth and do not stick to materials, and are resistant to impact deformation, thus avoiding proportioning errors caused by material residue from the source.
The core weighing system is equipped with imported high-precision sensors and is combined with self-developed intelligent control modules. After thousands of calibration and debugging processes, it ensures that the batching error is controlled at the top level in the industry, making the proportion of sand, gravel and cement in each batch exactly the same.
Modular process & adaptive design
The aggregate bins for sale adopts a modular assembly process. From the bins (such as the two/three/four bins models) to the feeding mechanisms, they can all be flexibly combined according to the scale of your production line. The installation and commissioning period is 30% shorter than the industry average.
The key connection parts of the equipment are treated with anti-loosening and anti-rust processes, combined with a sealed and dust-proof structure, which is suitable for the complex environments of various construction sites, significantly reducing the later maintenance costs and making the long-term stable operation of the equipment more durable and worry-free.
Main technical parameters of AGICO’s 800/1200/1600/2400/3200/4800 aggregate bins
| Item | Parameter | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
|---|---|---|---|---|---|---|---|
| Weighing Hopper Capacity (L) | Capacity of weighing dipper | 800 | 1200 | 1600 | 2400 | 3200 | 4800 |
| Storage Hopper Capacity (m³) | Capacity of storage hopper | 2×1.5 | 4×2.5 | 4×5 | 4×10 | 4×18 | 4×25 |
| Theoretical Productivity (m³/h) | Productivity | 48 | 56 | 75 | 120 | 160 | 280 |
| Batching Accuracy | Accuracy of batching | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Max Weighing Capacity (kg) | Max weighing | 2000 | 3000 | 3000 | 4000 | 5000 | 8000 |
| Number of Batchable Aggregates | Batchable species of aggregate | 2-3 types | 2-4 types | 2-5 types | 2-5 types | 2-5 types | 2-5 types |
| Feeding Height (mm) | Feed height | 2400 | 3000 | 2900 | 2900 | 2300 | 2300 |
| Belt Conveyor Speed (m/s) | Belt conveyor speed | 1.25 | 1.25 | 1.25 | 1.25 | 1.6 | 2.0 |
| Power (KW) | Power | 3×3 | 5×3 | 5×3 | 11 | 11 | 15 |
| Overall Weight (KG) | Overall weight | 2450 | 4500 | 5600 | 85000 | 105000 | 14000 |
| Overall Dimensions (L×W×H) (mm) | Overall dimensional(L×W×H) | 6000×2000×3020 | 9500×2200×3260 | 12000×2200×3260 | 10000×3000×4000 | 14500×3000×4600 | 15520×3900×5090 |

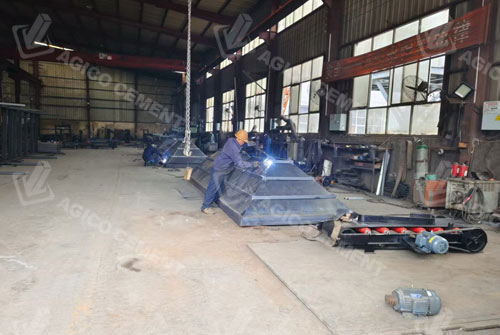

Why choose AGICO Cement? –concrete bins suppliers with 40 years experience
In the 1980s, AGICO Cement began to engage in the concrete industry. It is a company integrating the research and development, production and sales of a series of main products of construction machinery such as environmentally friendly mixing plants, standard commercial concrete mixing plants, mobile mixing plants and concrete mixers, as well as key components.
Focus on technical research and accept customized products
We offer you project design, process flow design, and the formulation of a suitable machine and equipment selection plan for you. We also design and manufacture products based on your special needs.
Factory direct sales price advantage
Eliminating the middleman link, the price is favorable. The factory sets prices based on the production cost of the products, does not quote false prices, and treats every customer sincerely. Regular customers enjoy discounts.
Strict quality inspection is carried out at every level
Product quality management is an important task. The inspection equipment purchased by the company is used to inspect product quality at any time. Providing excellent products and meeting customers’ demands are our pursuit.

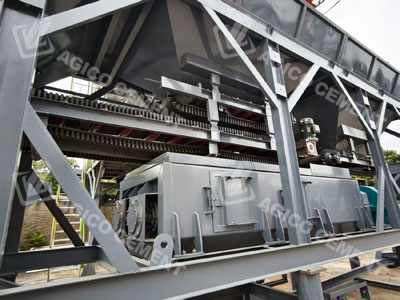

Aggregate storage bin spare parts
AGICO Cement provides comprehensive spare parts for aggregate bin.
Conveying Spare Parts: Conveyor belts (including idlers and rollers), scraper chains, screw conveyor blades and motors – responsible for material conveying.
Metering Spare Parts: Load cells, metering hoppers (including liners), pneumatic butterfly valves/solenoid valves – ensuring batching accuracy.
Control Spare Parts: PLC modules, touch screens, relays, contactors in the control cabinet – the core of equipment operation.
Mechanical Transmission Spare Parts: Gear motors, couplings, bearings, gears – driving the equipment to operate.
Wear-and-Tear Spare Parts: Silo liners, seals (sealing rings, oil seals), dust covers, bolts and nuts – requiring regular replacement.
Auxiliary Spare Parts: Level gauges (ultrasonic/capacitive), dust filter elements, solenoid valve coils – assisting stable equipment operation.
Details of some of aggregate bins for sale spare parts

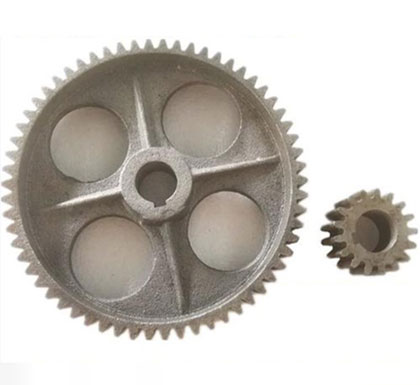

Gear Accessories
Specifications: 62, 76, 79-tooth large gear, 15, 17, 21-tooth drum drive small gear
Installation Position: Mounted on the drum under the conveyor belt of concrete batching machines, driving the conveyor belt through gear transmission
Compatible Equipment: Aggregate bins, concrete mixers, cement silos and other facilities to form efficient concrete mixing stations
Application Scenarios: Large and medium-sized hydropower projects, construction sites, concrete precast component factories
Core Advantages: Accurate weighing, high batching precision, fast operation, strong control functions; improves production efficiency, reduces labor intensity, and ensures concrete quality

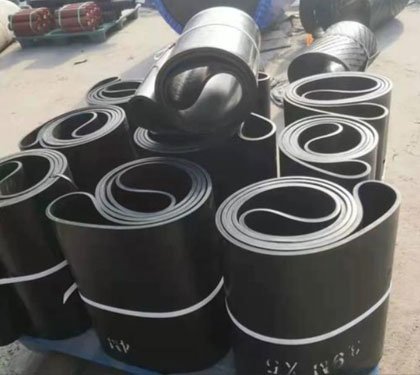

Conveyor Belt
Purpose: Specialized for feeding and discharging of concrete aggregate bin
Core Advantages: Stable transportation, no peeling or thread breakage, resistance to high and low temperatures, corrosion and wear
Regular Specifications: Width 50cm/60cm, common circular lengths 3.2m/4.8m
Customization Features: Length can be customized according to manufacturer’s equipment structure and customer needs for flexible adaptation
Material: High-quality rubber + canvas, sturdy, wear-resistant and durable
Bin
Specification Type: Common capacities 50T/80T/100T/150T, diameter 2.2m/2.5m/3.0m, made of Q235B steel plate (thickness 3-5mm)
Installation Position: Independent supporting facility for concrete batching machines, used with PLD series batching machines and JS series mixers
Core Function: Stores bulk materials such as cement, fly ash, sand and gravel, with air cushion/fluidization device to prevent material arching
Core Advantages: Good sealing performance, moisture-proof and dust-proof, stable material storage, equipped with level gauge for real-time material level monitoring
Application Scenarios: Concrete mixing stations, construction sites, precast component factories, hydropower engineering projects
Supporting Components: Equipped with butterfly valve/discharge gate at the bottom, dust removal device on the top, and safety ladder/guardrail for maintenance

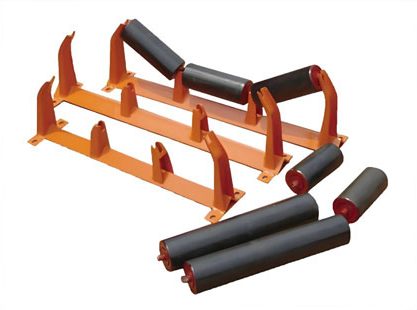

Conveyor Belt Idler
Standard Specification: 89*950*990mm (pipe diameter 89mm, pipe surface length 950mm, total length with shafts at both ends 990mm, shaft diameter 20mm, flat head width 14mm)
Optional Sizes: Pipe surface lengths 190/240/300/375/600/750/950/1150mm (all with 89mm pipe diameter)
Compatible Belt Widths: 500/600/650/800/1000mm conveyor belts
Product Features: Built-in bearings for smooth rotation, flat surface, low friction, sturdy and wear-resistant, easy installation

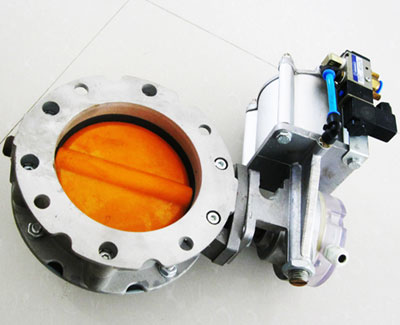

Butterfly Valve
Specification Type: Commonly available in DN150/DN200/DN250 calibers, suitable for the discharge port of aggregate bin
Installation Position: At the discharge port of aggregate bin and metering hoppers
Core Function: Controls the on-off and feeding speed of materials (sand, gravel, powder, etc.), assisting in batching accuracy control
Core Advantages: Fast opening and closing speed, good sealing performance, anti-clogging, easy operation, compatible with dry and wet materials
Material Characteristics: Valve body is mostly made of cast iron/stainless steel, with wear-resistant and corrosion-resistant butterfly plate for long service life

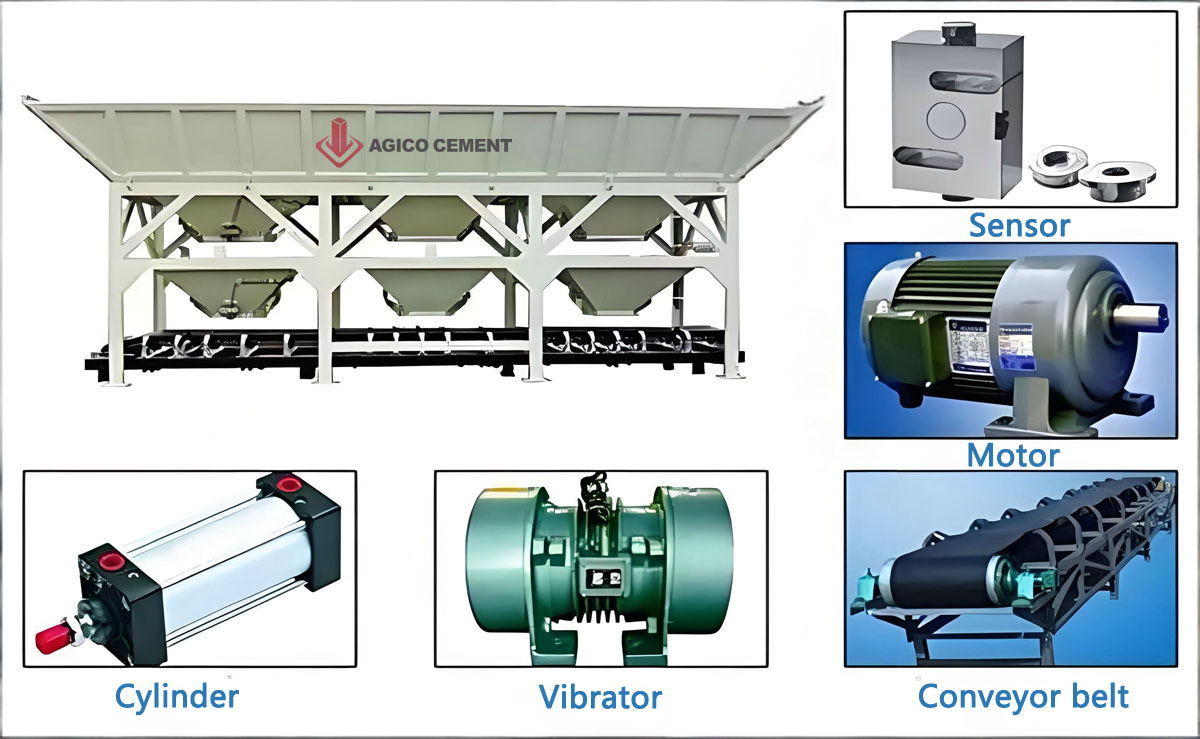

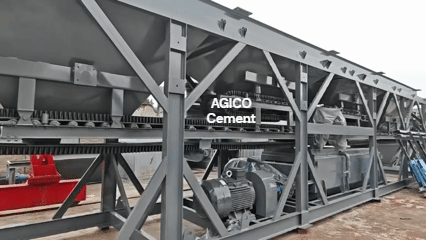

Structure of aggregate bin

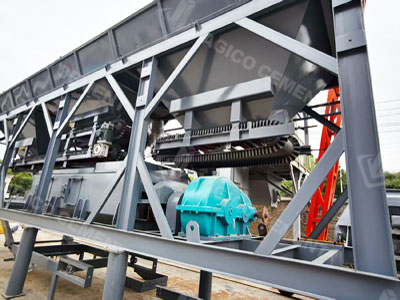

The aggregate bin is mainly composed of storage bins, frames, aggregate weighing systems and belt conveyors. The number of storage hoppers varies depending on the model size and the type of aggregate required by the customer. Common ones include three hoppers and four hoppers. Under the storage hopper, there is a metering hopper for measuring sand and gravel aggregates.
There is a discharge port below the aggregate bin. The pneumatic butterfly valve controls the switch, and the aggregates fall from the silo to the weighing hopper for weighing. Then, the weighed aggregates are conveyed to the waiting silo of the concrete mixer by a belt conveyor. After the other materials are mixed, they enter the mixer to start mixing. The entire process can be globally controlled through the control system.
