Storage Capacity: 1-20m³ (able to customize)
Raw materials: Welded from high-strength wear-resistant steel
Residual rate of discharged material: less than 0.8% (the standard requires 3-5%).
Blade design: It adopts a double logarithmic helical curve layout, increasing the mixing efficiency by 25% and achieving a concrete uniformity of over 98%
Power system: Hydraulic motor/electric motor/diesel engine directly drives the stirring shaft, with a 50% increase in response speed and a 20% reduction in energy consumption.
Why choose concrete mixer drum from AGICO Cement

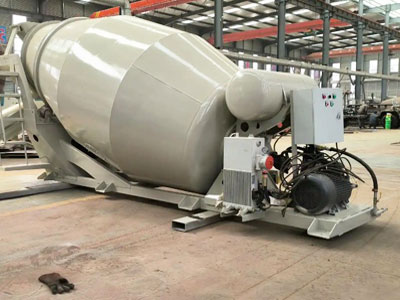

We sell individual concrete mixer drum as well as mini concrete trucks where the vehicle body and the tank are packaged for sale.
Advantages of our concrete mixer drum for sale
Multi-drive & Adaptable, Full Volume Range for Multiple Scenarios
There are drive methods available such as hydraulic, diesel engine, and electric motor. The volume ranges from 1 to 20m³ and can be matched with tractors, agricultural vehicles, mine tunnels, railways, etc. It is suitable for scenarios such as highway maintenance, tunnel construction, rural buildings, and water conservancy projects.
Premium Materials & Branded Parts, Wear-Resistant & Durable
The drum body and spiral blades are made of wear-resistant manganese steel. The hydraulic motor and reducer are products from well-known manufacturers and are made of 5mm super wear-resistant steel plates to extend the service life.
Ingenious Design, Easy for Complex Working Conditions
The subframe is welded with high-strength steel, ensuring uniform load distribution. The feeding hopper is funnel-shaped, and the Angle of the discharge trough is adjustable. Some sections are equipped with extended troughs. The modular design supports track movement and can operate stably in flat tunnels, inclined shafts (with a slope of ≤30°), and narrow tunnels, making it suitable for special scenarios such as underground and gas environments.
Lightweight Design, Weight Reduction & Efficiency Enhancement
By adopting an aluminum alloy water tank, high-strength wear-resistant steel tank body and subframe topology optimization, the overall self-weight of the vehicle is reduced by more than 1 ton. The cleaning system is equipped with a 450L water tank and a pneumatic waterway, which can be flushed immediately after unloading.
Efficient Operation, Excellent Mixing & Discharging
Simple structure, flexible operation, convenient installation and maintenance, low investment, and universal components. From loading to stirring and discharging, it only takes 6 to 10 minutes. The feeding and discharging speed is fast and clean, and the residue rate after unloading is less than 0.5%. The double-spiral blade stirring device is adopted, with anti-segregation in forward rotation and quick unloading in reverse rotation, ensuring the uniformity of concrete and construction efficiency.
Easy Maintenance, Low Fault Rate & Durable
The control process is simplified, supporting remote control operation. The modular structure facilitates cleaning and maintenance, reducing downtime. Low failure rate, long service life, and sturdy durability.

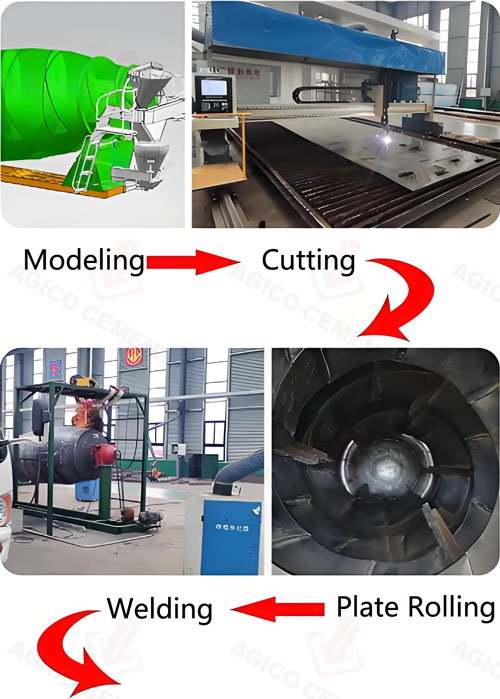

Advanced production processes of our mixer truck drum
Advanced production processes are adopted: longitudinal seam welding machine, fully automatic circumferential seam welding, integral assembly welding of mixing drum, long shaft roller frame, fully automatic sandblasting equipment, etc. It ensures the quality, technical level and appearance of the drum products.

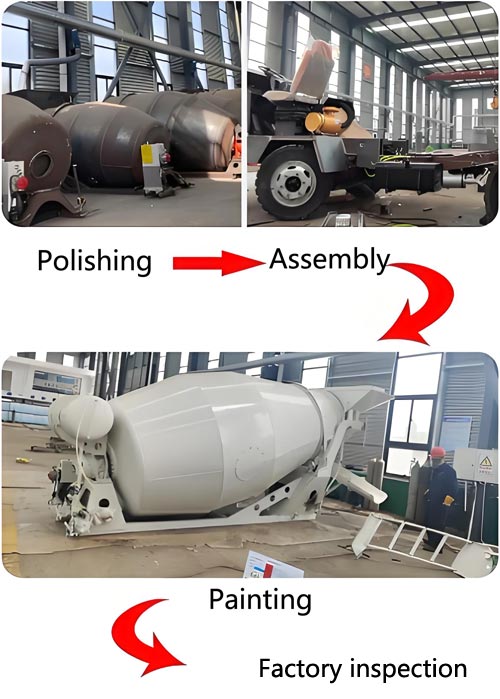

Processing flow
Assembly of assemblies (drive system, installation of feeding and discharging/cleaning devices) → Performance testing (stirring/discharging efficiency, sealing performance inspection), wheel frames, fully automatic sandblasting equipment, etc. It ensures the quality, technical level and appearance of the tank products.
Material cutting (steel plate laser/plasma cutting) → Component welding (tank body/subframe welding, including flaw detection inspection)
Machining (blade forming, precision milling of reducer installation surface) → Surface treatment (rust removal + wear-resistant coating/painting)
Parameters of concrete mixer drum for sale (customizable)
| Key Tank Parameters | Blade Design | Performance Indicators | Typical Application Scenarios |
| – Material: Q235B carbon steel – Thickness: 6-8 mm – Dimensions (L×W×H):2 m³: 5.2×2.1×2.7 m3 m³: 5.5×2.2×2.8 m | – Pitch: 400-550 mm – Inclination angle: 15°-16°- Wear resistance: Ordinary surfacing welding (HRC 45-50) | – Mixing speed: 0-12 rpm- Discharging speed: 0-5 rpm- Residue rate: ≤1.0%- Suitable chassis: 3-5 ton light truck | Rural house construction, underground support, small-scale site hardening |
| – Material: Q355B high-strength steel – Thickness: 8-10 mm – Dimensions (L×W×H):6 m³: 6.8×2.3×3.0 m8 m³: 7.2×2.4×3.1 m | – Pitch: 550-700 mm- Inclination angle: 14°-15°- Wear resistance: High-chromium alloy surfacing welding (HRC 55-60) | – Mixing speed: 0-14 rpm- Discharging speed: 0-6 rpm- Residue rate: ≤0.8%- Suitable chassis: 12-16 ton medium truck | Municipal road maintenance, small bridges, industrial park infrastructure |
| – Material: Q355B/NM360 wear-resistant steel – Thickness: 10-12 mm – Dimensions (L×W×H):10 m³: 7.8×2.45×3.2 m12 m³: 8.2×2.5×3.3 m | – Pitch: 700-850 mm- Inclination angle: 13°-14°- Wear resistance: NM400 liner + tungsten carbide coating | – Mixing speed: 0-14 rpm- Discharging speed: 0-6 rpm- Residue rate: ≤0.5%- Suitable chassis: 18-25 ton heavy truck | Urban main roads, river-crossing bridges, large residential area development |
| – Material: NM450 high wear-resistant steel- Thickness: 12-14 mm- Dimensions (L×W×H):15 m³: 8.8×2.55×3.4 m16 m³: 9.0×2.55×3.5 m | – Pitch: 850-950 mm- Inclination angle: 12°-13°- Wear resistance: Integral wear-resistant liner (HRC 60-62) | – Mixing speed: 0-13 rpm- Discharging speed: 0-5 rpm- Residue rate: ≤0.4%- Suitable chassis: 25-28 ton heavy truck | Expressways, industrial parks, airport runways |
| – Material: NM500 ultra-high wear-resistant steel- Thickness: 14-16 mm- Dimensions (L×W×H):18 m³: 9.5×2.55×3.6 m20 m³: 10.2×2.55×3.7 m | – Pitch: 950-1,050 mm- Inclination angle: 11°-12°- Wear resistance: Tungsten carbide + ceramic composite coating | – Mixing speed: 0-12 rpm- Discharging speed: 0-4 rpm- Residue rate: ≤0.3%- Suitable chassis: 31-35 ton heavy truck | Large-scale hydropower stations, port infrastructure, cross-regional water conveyance projects |
Environmental adaptability adjustment from AGICO
High-temperature areas: Equipped with an enhanced cooling system (such as increasing the water tank capacity to 500L), high-temperature resistant hydraulic oil (working temperature ≤55℃), and a sunshade.
In rainy areas: Enhance the sealing performance of the tank (IP67 protection level), and apply anti-rust coatings (such as zinc-nickel alloy plating).
In high-altitude areas: The engine can be equipped with a turbocharging device, and the hydraulic system can adapt to low-pressure environments.

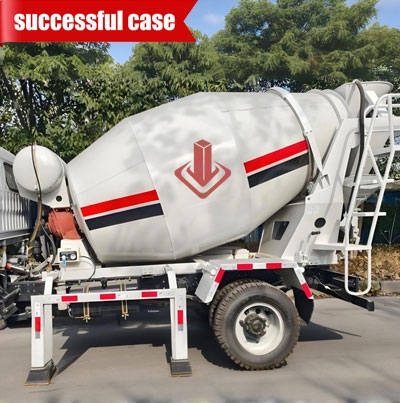

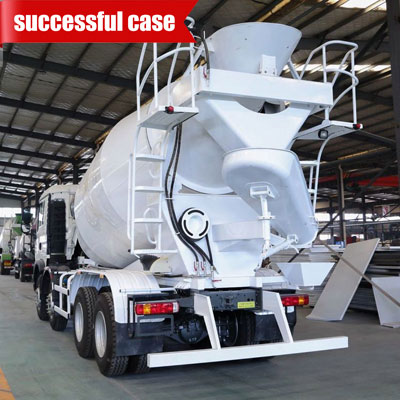

Our successful cases

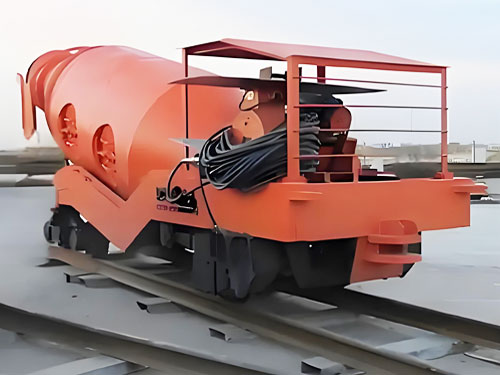

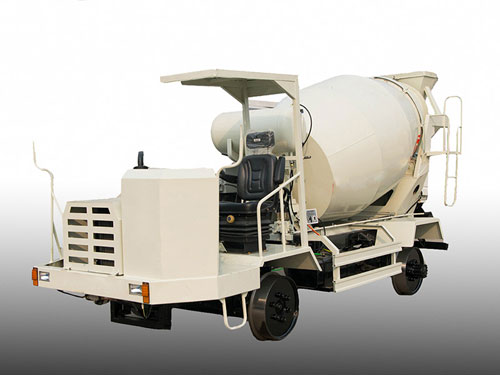

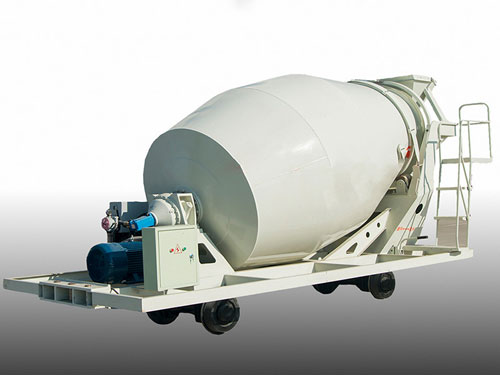

Concrete mixer drum for rail and mining
According to customer requirements, a special cement mixer drum installed on the railway track can be customized. The trailer is installed on the railway track. The stirring device has no power and can be pulled by external power. The traveling route is fixed. It is generally used in tunnel engineering, railway construction, subway engineering, etc.
The chassis of the cement mixer drum adopts track steel wheels and special cast components for railways. Concrete can be transported on railway tracks. When constructing on both sides of the railway, the unloading chute can also be lengthened. During construction, the concrete can be directly slid to the place where it needs to be poured, saving time and effort.
In addition to towing, AGICO also designs track-mounted concrete mixer trucks for railway departments that can travel. These trucks are powered by high-horsepower engines and have slow axles, enabling them to transport concrete while traveling on railways. The concrete construction on both sides of the railway has been solved, and the problem that concrete cannot be transported by the tracks inside the small tunnel has been resolved.

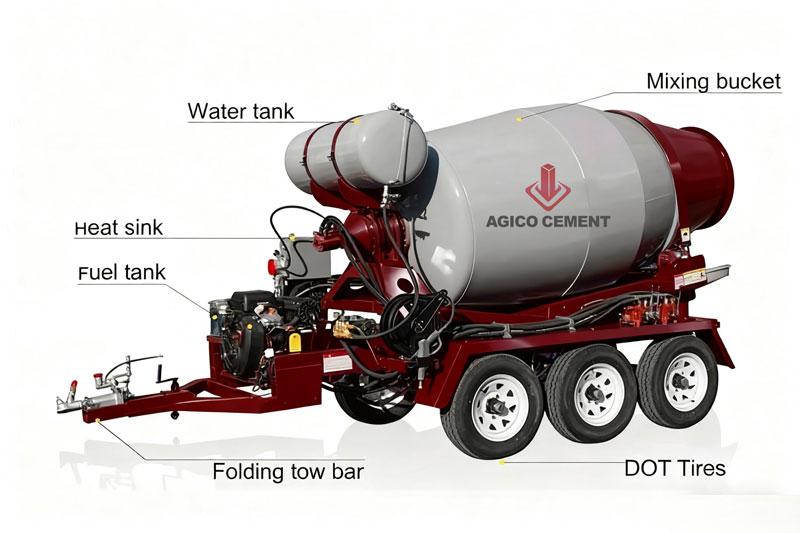

Structure of concrete truck drum
Core Components
Mixing tank body (wear-resistant steel + spiral blades), subframe (load-bearing frame), drive system (hydraulic/electric), feeding and discharging devices (feeding hopper + discharge chute), cleaning system (water tank + high-pressure water gun)
Core Functions
The tank mixes concrete, the drive system transmits power, the subframe bears weight, and the feeding and discharging/cleaning operations are guaranteed
