Concrete batching plant mixer types
A batching plant concrete mixer is one of the most important equipment in a batching plant.
So it must have these key features:
Even and efficient mixing, wear-resistant and durable, stable running, reliable sealing, easy maintenance, and compatible with automatic production.
AGICO CEMENT provides batching plant mixers specially for batching plants that meet all the above requirements. We offer customized solutions for different plant sizes, concrete types and budget needs.
| Product Series | Applications | Key Features |
| Twin-shaft Plant Mixer | Main model for batching plants · All-round & Efficient | Top choice for commercial concrete |
| Single-shaft Plant Mixer | Cost-effective for small plants | Low cost · Easy maintenance |
| Planetary Batching Plant Mixer | High-end for special concrete | UHPC · Fiber concrete · Zero-dead-angle mixing |
| Pan Batching Plant Mixer | For dry-hard materials | For blocks/mortar · Small footprint |
| Self-loading Plant Mixer | Economic model for simple use | For fluid concrete · Low cost |
Batching plant concrete mixers AGICO provides

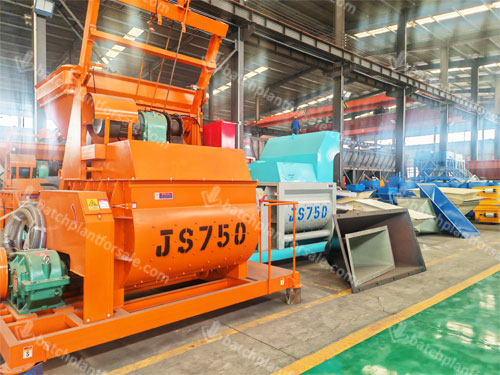

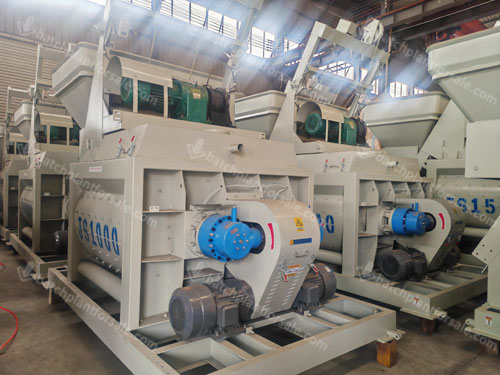

Twin-shaft batching plant mixer
Top choice for commercial concrete plants, core plant mixer for medium to large-scale batching plants
Advantages
Thickened material, double-rope lifting hopper
Pure copper motor, long-lasting power
High-quality parts, wear-resistant and durable
Parameters
| Item\Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 |
|---|---|---|---|---|---|---|
| Discharge Capacity | 500L | 750L | 1000L | 1500L | 2000L | 3000L |
| Feed Capacity | 800L | 1200L | 1600L | 2400L | 3200L | 4800L |
| Theoretical Output (m³/h) | ≈25 | ≈35 | ≈50-60 | ≈75-90 | ≈120 | ≈150 |
| Maximum Aggregate Size (mm) | ≤40/50 | ≤40/50 | ≤60/80 | ≤60/80 | ≤80/100 | ≤80/120 |
| Mixing Blades – Rotational Speed (rpm) | 35 | 26 | 29.6 | 23.5 | 24.5 | 21 |

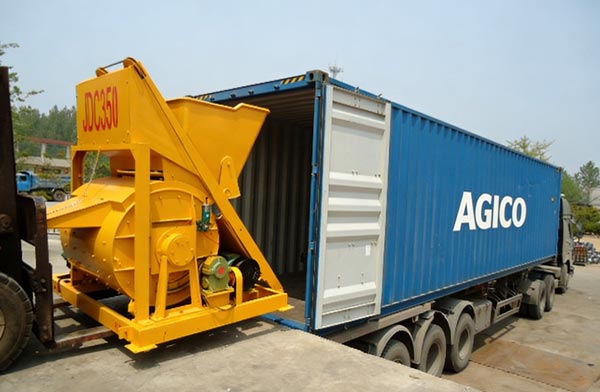

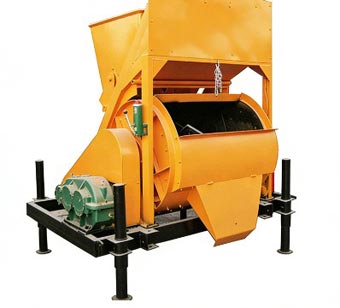

Single-shaft batching plant mixer
Top choice for commercial concrete plants, core plant mixer for medium to large-scale batching plants
Materials
Body: carbon steel, stainless steel, aluminum alloy, etc.
Conveyor belt: PVC, PU, rubber, etc.
Drum: metal drum, plastic drum, etc.
Other parts: belt baffle, workbench, etc.
Parameters
| Model | JDC350 | JDC500 |
| Discharging Capacity | 350L | 500L |
| Feeding Capacity | 560L | 800L |
| Productivity | 17.5-21 m³/h | 20-30 m³/h |
| Maximum Aggregate Size | 40/60mm | 60/80mm |
| Lifting Motor Power | 4.5 kw | 5.5 kw |
| Total Machine Weight | 3500kg | 3700kg |

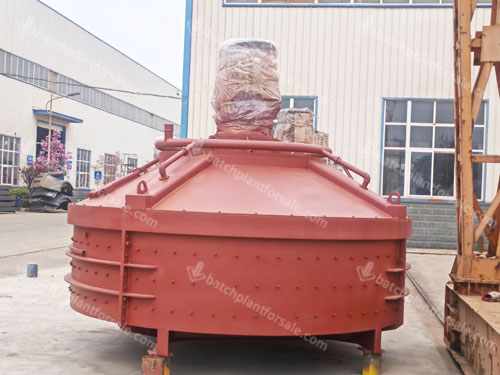

Planetary batching plant mixer
For high-performance concrete, top mixing uniformity, a suitable batching plant mixer for large batching plants.
Advantages
Custom pneumatic door, anti-leakage protection
Fully automatic, low noise
Accurate mixing ratio, explosion-proof
Even mixing, thickened steel plate
Parameters
| Model | 100L | 150L | 250L | 330L | 500L | 750L | 1000L | 1250L | 1500L | 2000L | 2500L | 3000L | 4000L | 4500L |
| Discharge Capacity | 100L | 150L | 250L | 330L | 500L | 750L | 1000L | 1250L | 1500L | 2000L | 2500L | 3000L | 4000L | 4500L |
| Stirring rated power | 7.5 | 11 | 15 | 18.5 | 22 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 200 | 250 |
| Hydraulic discharge power | pneumatic/hydraulic | pneumatic/hydraulic | pneumatic/hydraulic | pneumatic/hydraulic | pneumatic/hydraulic | pneumatic/hydraulic | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |

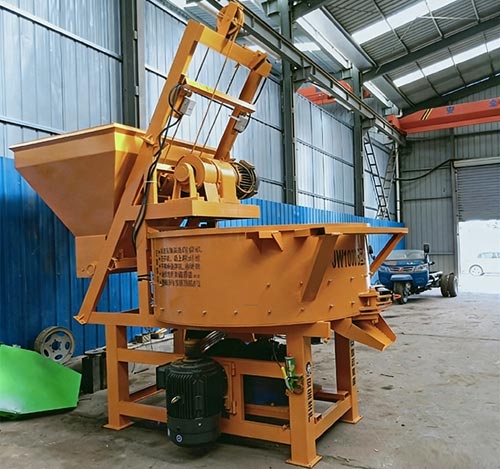

Pan batching plant mixer
For dry-hard concrete, blocks and mortar, a small-sized, high-efficiency plant mixer.
Advantages
Produce concrete of many types
Accurate and stable proportioning
Use any formula at any time
Troubleshooting tips for users
Stable and long service life
Strong overload & vibration resistance
Parameters
| Specification/Model | 500 | 750 | 1000 |
| Mixing Drum Capacity | ≈1.32 m³ | ≈1.90 m³ | ≈2.35 m³ |
| Discharge Capacity | 0.5 m³ | 0.75 m³ | 1 m³ |
| Max Aggregate Size (mm) | ≤70 | ≤70 | ≤70 |
| Hoisting Motor Power (kW) | 4.5 | 5.5 | 7.5 |
| Water Pump Motor Power (kW) | 1.1 | 1.5 | 1.5 |
| Mixing Motor Power (kW) | 15 | 22 | 30 |

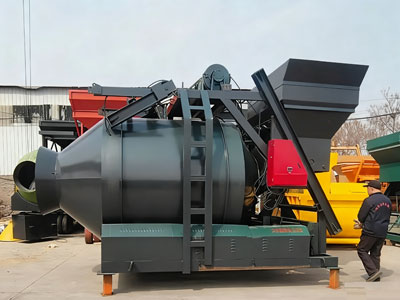

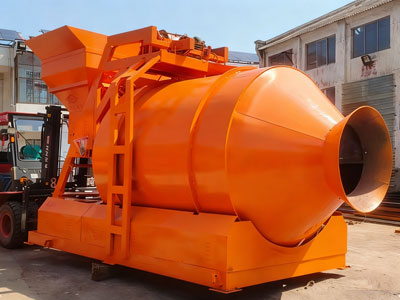

Self-loading batching plant mixer
Low-cost basic model, batching plant mixer for simple fluid concrete production.
Advantages
Strong power, complete models
Precise processing, good stability
Pure copper motor, long-lasting power
Control system with door lock
Parameters
| Item/Parameter | JZC250 | JZC350 | JZC500 | JZC750 |
|---|---|---|---|---|
| Discharging Capacity (L) | 250 | 350 | 500 | 750 |
| Feeding Capacity (L) | 320 | 560 | 800 | 1200 |
| Productivity (m³/h) | 6-8 | 10-14 | 18-20 | 20-22 |
| Working Performance (Drum Speed, r/min) | 17 | 14 | 13 | 13 |
| Total Machine Weight (Kg) | 800 | 1450 | 2100 | 2800 |
Why choose AGICO CEMENT as your plant mixer supplier?
AGICO CEMENT specializes in the R&D and production of various concrete mixing equipment, from small plant mixers to large batching plant concrete mixer systems. We fully meet your engineering needs. With reliable quality and complete services, we have won the trust of many customers.
Competitive Concrete equipment
Flexible and adaptable with complete models. Our batching plant mixer can produce concrete of different specifications, with accurate and stable proportioning, and supports the use of any formula at any time to meet diverse project needs.
Supported by professional factory technology, the equipment is easy to repair and runs stably and reliably.
We support personalized customization with mature technology and stable performance, which can adapt to various sites and production requirements.
Manufacturer strength & guarantee
Strict material selection
AGICO refuses recycled materials and ensures equipment quality from the source for your safe use.
Professional R&D
Our experienced R&D team and site planners can customize the overall layout according to your site size.
Service system
Complete service
A full set of services, including pre-sales consultation, sales support, and after-sales maintenance, to fully protect your interests.
In-stock supply
Large inventory for fast delivery. Various materials and processes can be customized as needed to quickly respond to your project demands.
How to choose the right batching plant mixer
Choose by output
Small plant (≤60m³/h): Single-shaft plant mixer, pan batching plant mixer
Medium plant (80–120m³/h): Twin-shaft batching plant concrete mixer
Large plant (150–240m³/h): Twin-shaft plant mixer, planetary batching plant mixer
Special materials: Planetary batching plant concrete mixer
Choose by concrete type
Normal commercial concrete: Twin-shaft batching plant concrete mixer
High-performance / UHPC / fiber concrete: Planetary batching plant mixer
Dry-hard / block material: Disc plant mixer
Fluid concrete (simple use): Gravity batching plant mixer
Choose by budget & site
Enough budget & need stability: Twin-shaft batching plant concrete mixer
Limited budget & small site: Single-shaft plant mixer / self-loading plant mixer/ pan batching plant mixer
Special needs: Planetary batching plant mixer
