The large concrete mixer is a kind of concrete mixer used in engineering. It not only has a large production capacity but also high efficiency.
Advantages: The big concrete mixer has the advantages of convenient operation, fast unloading speed, long service life of liners and blades, and easy maintenance. It is an ideal model at home and abroad at present and has the advantage of high degree of automation.
Applications: The large concrete mixer for sale can be applied to the mixing of plastic, dry-hard, lightweight aggregate concrete and various mortars and grouts. It has the advantages of wide application range, good stirring quality, high production efficiency, low energy consumption, low noise and reasonable structure, and is widely used in large-scale construction projects, road and bridge construction, water conservancy and hydropower projects and other fields.
Why choose AGICO Cement?
Precision Welding
The mixer adopts full-welding technology. The thickened drum is wear-resistant and durable, and the stable frame is made of channel steel.
Premium Material Selection
Made of stainless steel, the thickened steel plate is sturdy and reliable, with long service life, excellent corrosion resistance, and light weight.
Reasonable Design
The whole machine is reasonably designed with optimized performance: fast unloading, easy maintenance, and high production efficiency.

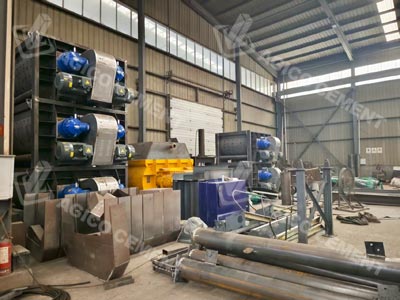

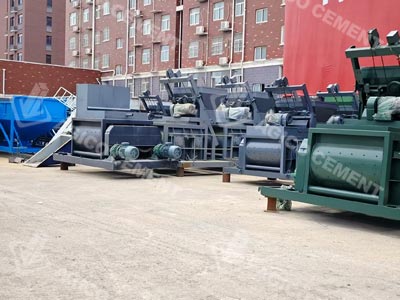

Sufficient Supply
We have our own factory and equipment, with a variety of product specifications. Products are in stock and shipped immediately. One-stop procurement meets your diverse needs.

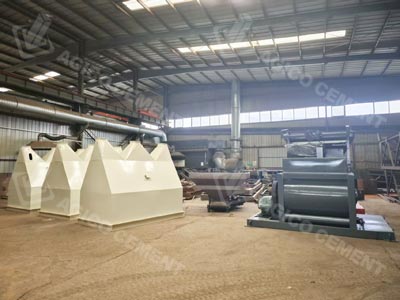

Customization Support
We can process and customize products according to customer requirements—specifications and sizes can all be tailored. Goods will be delivered on time as per the agreed schedule.
Wide Application Range
Suitable for large, medium and small precast component factories, as well as industrial and civil construction project units. It can mix various types of concrete and various mortars/plasters.
4 types of large concrete mixers provided by AGICO CEMENT

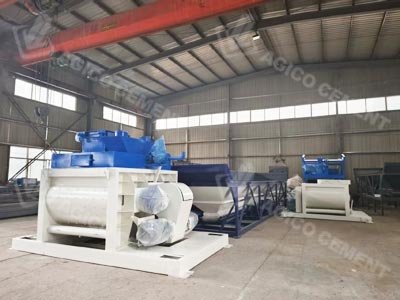

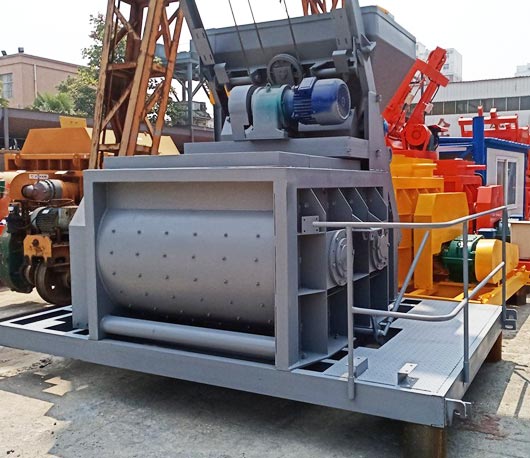

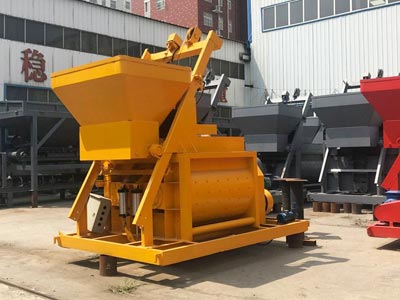

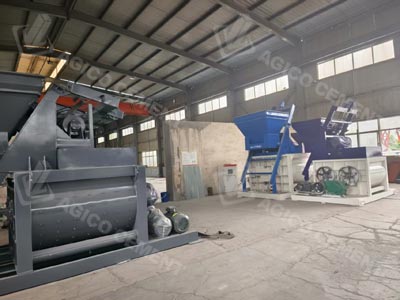

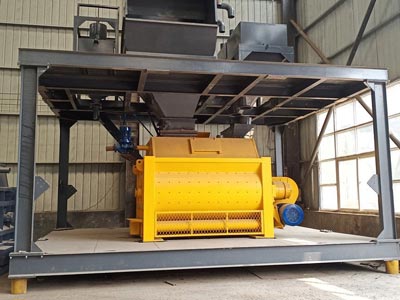

1. Shaft type large concrete mixer for sale
The mixing of raw materials is forced together by blades on the mixing shaft, resulting in high uniformity and speed, suitable for high-strength, high-performance concrete. AGICO provides single and twin shaft mixers.
Twin-shaft mixer: The mainstream model, with two shafts rotating in opposite directions, offering a wide mixing range and high efficiency, making it a core piece of equipment in a batching plant.
Single-shaft mixer: Compact structure, suitable for small to medium-sized batch production, with lower maintenance costs.
Advantages of shaft large concrete mixer
Equipped with a high-performance cycloidal pinwheel reducer, ensuring smooth operation and low noise.
The mixing shaft, mixing arms, mixing blades, and bushings are all made of thickened, wear-resistant high-manganese chromium alloy, ensuring uniform and stable mixing.
Multiple shaft end sealing protection technology ensures high production efficiency, long service life, and leak-proof slurry.
A 360-degree spraying device provides high-speed water spraying with a wide coverage area, improving spraying efficiency, significantly reducing water consumption, and lowering production costs.
A throttle valve can regulate water flow, limiting the speed at which fluid passes through the valve, thereby controlling flow and pressure.
All electrical components inside the distribution box are mounted on insulating boards, ensuring safety, reliability, and ease of operation and maintenance.
Parameters of shaft type large concrete mixer
| Model | 500L | 750L | 1000L | 1500L | 2000L | 2500L | 3000L | 4000L |
| Discharge Capacity | 500L | 750L | 1000L | 1500L | 2000L | 2500L | 3000L | 4000L |
| Feeding Capacity | 800L | 1200L | 1600L | 2400L | 3200L | 400L | 4800L | 5600L |
| Theoretical Production Capacity (m³/h) | ≈25 | ≈35 | ≈50-60 | ≈75-90 | ≈120 | ≈120-150 | ≈150 | ≈240 |
| Aggregate Particle Size (Pebble/Crushed Stone) | ≤40/50 | ≤40/50 | ≤60/80 | ≤60/80 | ≤80/100 | ≤80/100 | ≤80/100 | ≤80/120 |
| Working Cycle Time (S) | 72 | 72 | 72/60 | 72/60 | 60 | 60 | 60 | 60 |
| Machine Weight (kg) | 4000 | 5500 | 8700 | 11130 | 7500 | 7500 | 9200 | 9200 |
| Dimensions (L×W×H) (mm) | 3050X2530X2680 | 3110X2620X2580 | 4320X2200X3300 | 4720X2200X3000 | 3500X2400X2152 | 3500X2400X2152 | 4050X2680X2150 | 4050X2680X2150 |
| Mixing Blades Rotation Speed | 35r/min | 26r/min | 29.6r/min | 23.5r/min | 24.5r/min | 24.5r/min | 21r/min | 21r/min |
| Mixing Blades Quantity | 2X7 | 2X7 | 2X8 | 2X8 | 2X8 | 2X8 | 2X10 | 2X10 |
| Mixing Motor Power (kW) | 18.5 | 30 | 2X18.5 | 2X30 | 2X37 | 2X37 | 2X55 | 2X55 |

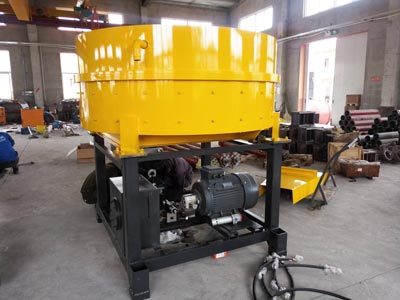

2. Large pan mixer
Advantages of AGICO’s large pan mixer
No mixing dead ends, homogeneity compliance rate over 98%, compatible with various materials.
Compact design saves space, with manual/automatic dual modes for easy operation.
Thickened manganese steel material + quenched blades, wear-resistant and durable with low maintenance costs.
Parameters of large pan mixer
| Specification/Model | 500 | 750 | 1000 |
| Mixing Drum Capacity | ≈1.32 m³ | ≈1.90 m³ | ≈2.35 m³ |
| Discharge Capacity | 0.5 m³ | 0.75 m³ | 1 m³ |
| Max Aggregate Size (mm) | ≤70 | ≤70 | ≤70 |
| Mixing Drum Dimensions | |||
| – Diameter (m) | 1.5 | 1.8 | 2.0 |
| – Height (m) | 0.75 | 0.75 | 0.75 |
| Mixing Blades | |||
| – Quantity | 5×2 | 5×2 | 5×2 |
| – Speed (rpm) | 26/min | 22/min | 22/min |
| Hoisting Motor Power (kW) | 4.5 | 5.5 | 7.5 |
| Water Pump Motor Power (kW) | 1.1 | 1.5 | 1.5 |
| Mixing Motor Power (kW) | 15 | 22 | 30 |

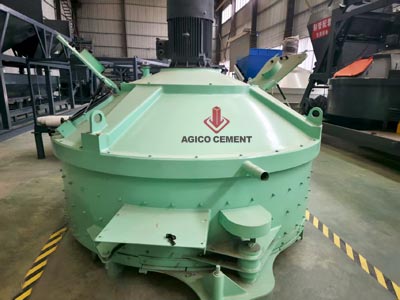

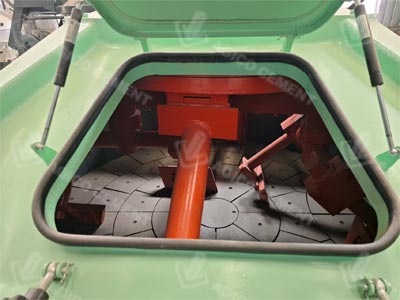

3. Planetary type large concrete mixer
Advantages of AGICO’s planetary type big concrete mixer
Mixing cycle of 40-60 seconds per batch, daily output of 80-150m³, high production efficiency.
Optimized transmission system, 15%-20% more energy-efficient than similar products, reducing costs.
Thickened seamless steel drum + heavy-duty bearings, stable operation with no residue during discharging.
Parameters of large planetary mixer
| Model | 500L | 750L | 1000L | 1250L | 1500L | 2000L | 2500L | 3000L | 4000L | 4500L |
| Discharge Capacity | 500L | 750L | 1000L | 1250L | 1500L | 2000L | 2500L | 3000L | 4000L | 4500L |
| Stirring rated power | 22 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 200 | 250 |
| Hydraulic discharge power | pneumatic/hydraulic | pneumatic/hydraulic | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Planetary/main mixer | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 3/2 | 3/2 | 3/2 | 3/2 | 3/2 |
| High speed auxiliary stirring number | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Side scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Increase hopper power | 4 | 7.5 | 11 | 15 | 15 | 22 | 30 | 37 | – | – |
4. Self loading type large concrete mixer
Advantages of AGICO’s self loading type big concrete mixer
Equipped with leakage protection, easy to understand, high safety factor.
Stable operation, low noise, high torque, reduces motor speed and extends motor service life.
Thickened and widened, uniform mixing with high efficiency, more material carried during mixing.
Enlarged and widened handle design for fast and non-clogging discharging, 1/3 faster than ordinary small discharge outlets on the market.
Parameters of large planetary mixer
| Item/Parameter | JZC500 | JZC750 |
|---|---|---|
| Discharging Capacity (L) | 500 | 750 |
| Feeding Capacity (L) | 800 | 1200 |
| Productivity (m³/h) | 18-20 | 20-22 |
| Working Performance (Drum Speed, r/min) | 13 | 13 |
| Maximum Aggregate Size (mm) | 60-80 | 60-80 |
| Water Supply Accuracy | Error ≤ 2% | Error ≤ 2% |
| Electric Motor – Mixing Motor (KW) | 11 | 15 |
| Electric Motor – Lifting Motor (KW) | 5.5 | 7.5 |
| Electric Motor – Water Pump Motor (KW) | 0.75 | 1.1 |
| Tire Specification | 7.50-16 | – |
| Maximum Travel Speed (km/h) | 20 | – |
| Overall Dimensions (L × W × H, mm) | 5226×2200×5460 | 6116×2056×6060 |
| Total Machine Weight (Kg) | 2100 | 2800 |
