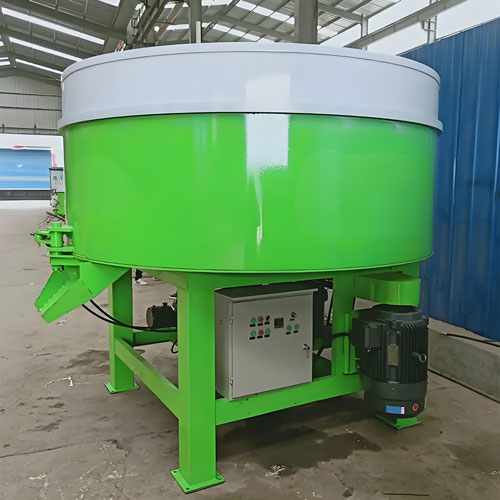

Pan mixer for sale
This machine is a new type of pan mixer, it consists of mixing pan, discharge port, mixing arm, frame, gear box package and transmission mechanism.
Its characteristic is that the output shaft of the reducer drives the mixing spindle to make it run, and there are fixed mixing teeth on the mixing shaft, and the mixing shaft drives the teeth to make the materials mix fully.
The mixer has long life, energy saving, small volume, fast mixing speed, and can work continuously.
Why choose pan mixer for sale from AGICO?
Optimized mixing blade, more efficient mixing
Fast mixing speed, even mixing, no dead angle mixing
High-pressure cleaning device, fast cleaning speed
Hard gear reducer, stable and reliable quality
Advantages of pan concrete mixer
High mixing efficiency and small floor space. The spiral blade is made of high wear-resistant special alloy.
The pan concrete mixer adopts reducer transmission, smooth rotation and low noise.
The pan type mixer feeds from the top and discharges from the bottom, with reasonable structure.
The sealing between each combination surface is tight, and the operation is smooth.
AGICO CEMENT offers automatic feeding pan concrete mixer, truck-mounted pan concrete mixer, mobile pan concrete mixer. We also provide twin shaft concrete mixer and planetary mixer.

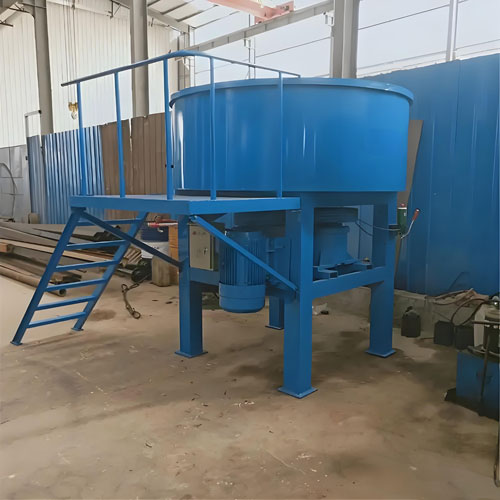

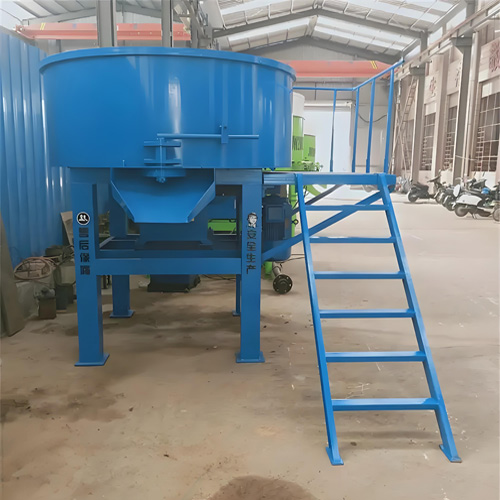

Automatic feeding pan concrete mixer
The machine consists of frame, platform, mixer, geared motor, electrical system and other components. The mixing system includes electric motor, reducer, pan, blades, and protective cover.
Electrical System
- Short circuit protection
- Overload protection
- Insulated panel design

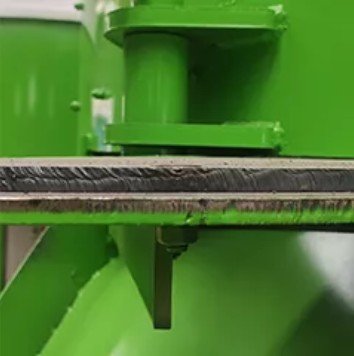

High-Quality Lining Plates
- Made of national standard manganese steel
- 2cm thick base plate
- 2cm thick side plates

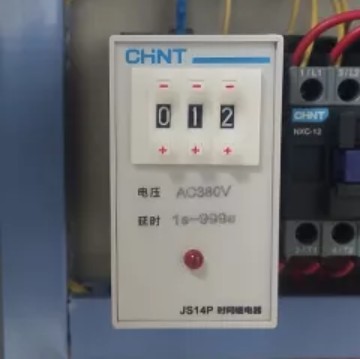

Water Supply System
- Flow control via throttle valve
- Total water volume regulated by time relay

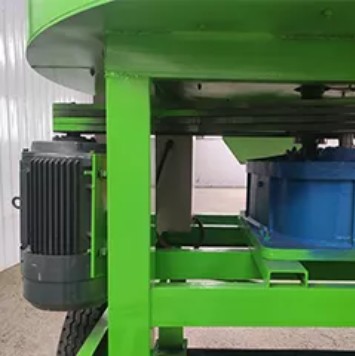

Reducer & Mixing Motor
- Reduces speed while increasing output torque
- Reduces load inertia by motor output multiplied by reduction ratio
Specifications of automatic feeding pan concrete mixer
| Specification/Model | 500 | 750 | 1000 |
| Mixing Drum Capacity | ≈1.32 m³ | ≈1.90 m³ | ≈2.35 m³ |
| Discharge Capacity | 0.5 m³ | 0.75 m³ | 1 m³ |
| Max Aggregate Size (mm) | ≤70 | ≤70 | ≤70 |
| Mixing Drum Dimensions | |||
| – Diameter (m) | 1.5 | 1.8 | 2.0 |
| – Height (m) | 0.75 | 0.75 | 0.75 |
| Mixing Blades | |||
| – Quantity | 5×2 | 5×2 | 5×2 |
| – Speed (rpm) | 26/min | 22/min | 22/min |
| Hoisting Motor Power (kW) | 4.5 | 5.5 | 7.5 |
| Water Pump Motor Power (kW) | 1.1 | 1.5 | 1.5 |
| Mixing Motor Power (kW) | 15 | 22 | 30 |

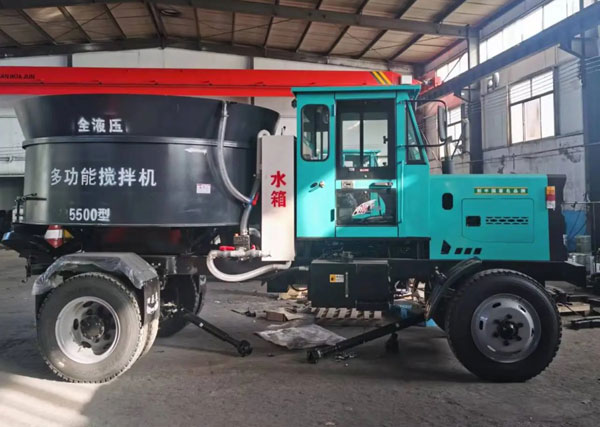

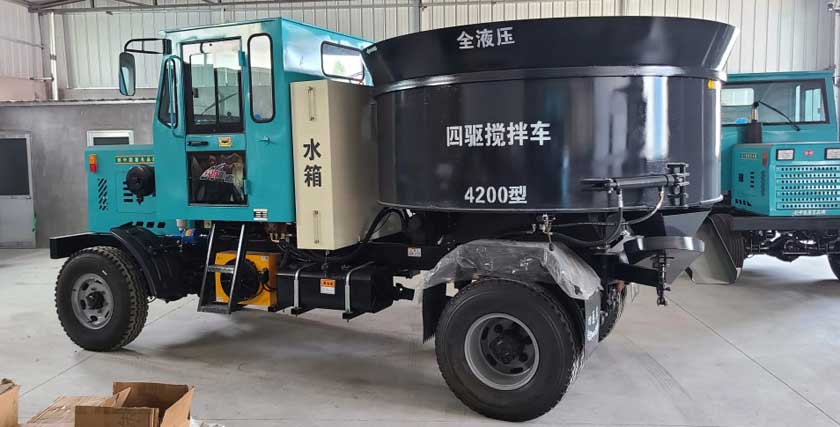

Truck-mounted pan concrete mixer
The machine consists of frame, platform, mixer, geared motor, electrical system and other components. The mixing system includes electric motor, reducer, pan, blades, and protective cover.
Mixing System
- Uniform and stable mixing
- Multi-layer shaft seal technology prevents leakage
- Extended service life

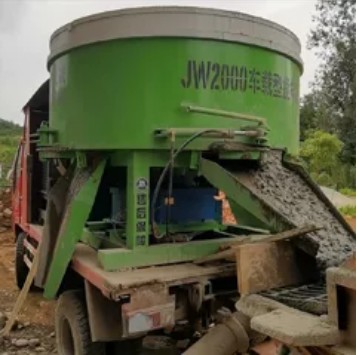

Mobile Operation
- Mounted on vehicle chassis for mixing while moving
- Three-side hydraulic discharge adapts to various environmentss

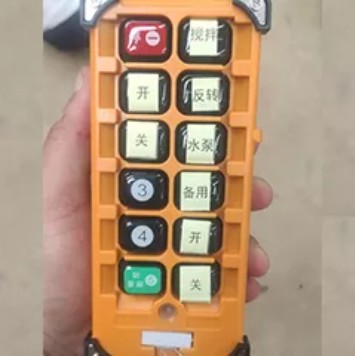

Remote Control
- Wireless remote operation
- Individual control for three discharge gates
- Timed water feeding
- Reverse mixing function

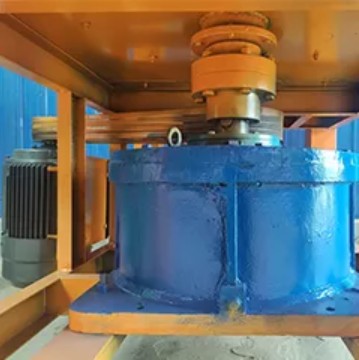

Reducer & Mixing Motor
- Reduces speed while increasing output torque
- Reduces load inertia by motor output multiplied by reduction ratio
Specifications of truck-mounted pan concrete mixer
| Parameter | Model 1000 | Model 1500 | Model 2000 | Model 3000 | Model 4000 |
| Drum Capacity (mixed) | ≈2.54 m³ | ≈3.14 m³ | ≈3.79 m³ | ≈4.52 m³ | ≈5.3 m³ |
| Discharge Capacity | 1 m³ | 1.5 m³ | 2.5 m³ | 3.2 m³ | 4 m³ |
| Max Aggregate Size | ≤70 mm | ≤70 mm | ≤70 mm | ≤70 mm | ≤70 mm |
| Drum Dimensions | |||||
| – Diameter | 1.8 m | 2.0 m | 2.2 m | 2.4 m | 2.6 m |
| – Height | 1.0 m | 1.0 m | 1.0 m | 1.0 m | 1.0 m |
| Mixing Blades | |||||
| – Configuration | 5×2 sets | 5×2 sets | 5×2 sets | 5×2 sets | 5×2 sets |
| – Rotation Speed | 22 rpm | 22 rpm | 22 rpm | 22 rpm | 20 rpm |
| Hydraulic Power Unit | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW |
| Water Pump Motor | 1.1 kW | 1.1 kW | 1.1 kW | 1.5 kW | 2.2 kW |
| Main Mixing Motor | 15 kW | 15 kW | 18.5 kW | 22 kW | 30 kW |

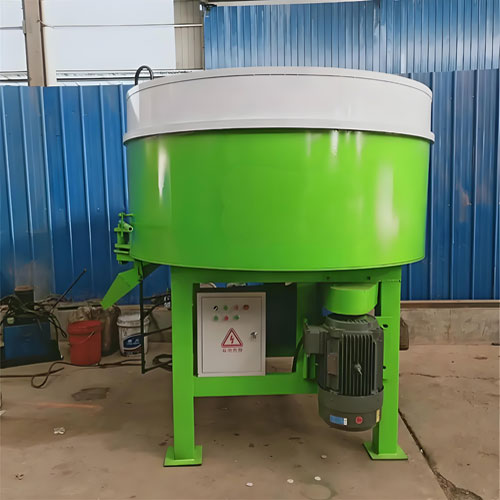

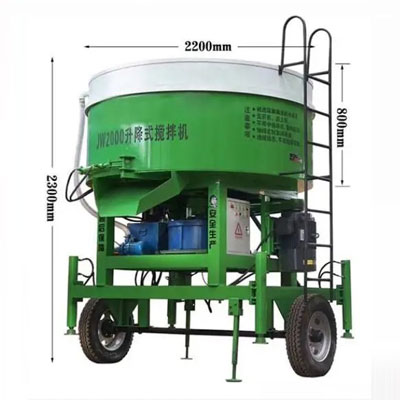

Mobile & liftable pan concrete mixer
This model features a simple structure, easy installation, and convenient and safe maintenance. As a mobile, liftable, vertical-shaft forced mixer, it efficiently processes materials through shearing, pressing, flipping, and throwing actions by its blades, creating cross-material flow for intense and uniform mixing.
Ideal for construction projects requiring high-efficiency mixing of specialized materials, including precast concrete, dry-mix mortar, and lightweight concrete production.
Key Advantages
Short mixing time with high-quality output
Flexible operation and complete discharge
Suitable for fine aggregates, lightweight aggregates, and dry concrete
Can also be used for mortar mixing
Technical Specifications
Mixing Principle: Vertical-shaft forced mixing
Mobility: Hydraulic lift system for easy relocation and height adjustment
Discharge Type: Flat-mouth design for efficient material flow

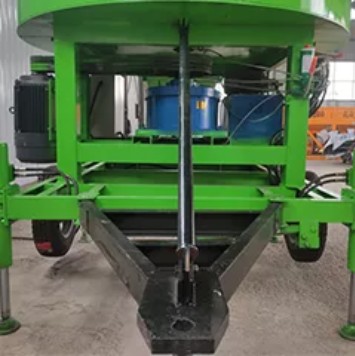

Towing Tripod
- Equipped with tires for easy relocation

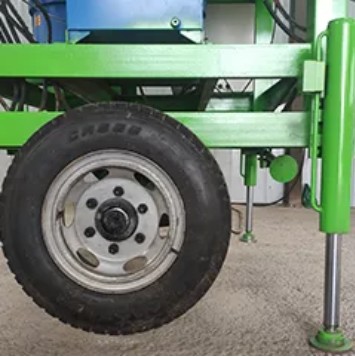

Tires & Hydraulic Outriggers
- Elevates machine height for convenient material receiving
- Compatible with concrete pumps
- Easy transportation with tires

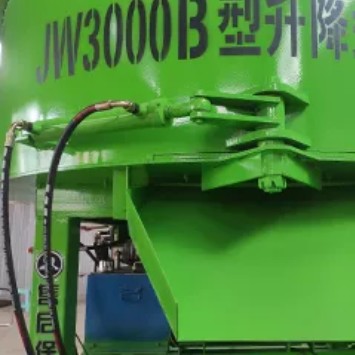

Discharge Control
- Manual gate opening
- Optional pneumatic or hydraulic automatic discharge available
Specifications of mobile & liftable pan concrete mixer
| Parameter | Model 1000 | Model 1500 | Model 2000 | Model 3000 | Model 4000 |
| Mixing Drum Capacity | ≈2.54 m³ | ≈3.14 m³ | ≈3.79 m³ | ≈4.52 m³ | ≈5.3 m³ |
| Discharge Capacity | 1 m³ | 1.5 m³ | 2 m³ | 3.2 m³ | 4 m³ |
| Max Aggregate Size | ≤70 mm | ≤70 mm | ≤70 mm | ≤70 mm | ≤70 mm |
| Drum Dimensions | |||||
| – Diameter | 1.8 m | 2.0 m | 2.2 m | 2.4 m | 2.6 m |
| – Height | 1.0 m | 1.0 m | 1.0 m | 1.0 m | 1.0 m |
| Mixing Blades | |||||
| – Quantity | 5×2 sets | 5×2 sets | 5×2 sets | 5×2 sets | 5×2 sets |
| – Rotation Speed | 22 rpm | 22 rpm | 22 rpm | 22 rpm | 20 rpm |
| Hydraulic Power Unit | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW |
| Water Pump Motor | 1.1 kW | 1.1 kW | 1.1 kW | 1.5 kW | 2.2 kW |
| Main Mixing Motor | 15 kW | 15 kW | 18.5 kW | 22 kW | 30 kW |
Structure of pan type concrete mixer
Frame Assembly
Heavy-duty welded construction using high-carbon steel plates and channel steel
Rigid and stable structure to support all working components
Manufactured under strict quality control to meet industrial standards
Power Transmission System
Cycloidal gear reducer drives the main shaft for smooth and reliable operation
Nylon pin-type coupling ensures efficient torque transfer
Easy assembly & maintenance with modular design
Mixing Unit
Main shaft driven via pin-type coupling for consistent power delivery
Aggressive mixing action ensures uniform blending of materials
Minimal residue due to optimized mixing chamber design
