Capacity: 100L-4500L
The uniquely developed high-speed mixing device on the high-speed convection planetary mixer can reach a speed of up to 400-500rpm.
The high-speed mixing device is dynamically balanced, which largely ensures the stability and reliability of the mixer equipment operation.
The material has higher dispersion performance and better homogeneity.
The whole machine has a unique structural design, reliable and durable, and low equipment maintenance cost.
The shape design and installation angle of the mixing blades have been innovatively optimized, which greatly reduces the probability of material splashing and is more time-saving and trouble-free to clean.
Advantages of AGICO’s planetary concrete mixer
Efficient mixing
Compared with other mixers of similar design, the planetary concrete mixer’s blade and gear arrangement make the mixing process more efficient. Within 60 seconds of operation, the movement trajectory of the mixing blade can cover the entire mixing drum, and each mixing arm alternately covers the gap to ensure that the concrete is evenly mixed.
Fast unloading
The mixer has a fast and thorough unloading speed, and the design of the auxiliary unloading scraper makes unloading without dead corners, which improves work efficiency.
Large capacity design
Compared with other products with the same output, our planetary concrete mixer has a larger mixing capacity, can carry the full rated load and mix correctly, and is suitable for large concrete production projects.
Durability
The large reduction gearbox and oil bath design enable the mixer to work for a long time in a narrow, unventilated space without overheating, ensuring the durability of the equipment.
High-strength concrete
Planetary mixing action can provide higher-strength concrete, saving 10-15% cement compared to other products, reducing production costs.
Smooth operation
The rubber-sealed discharge door design allows for smooth operation without water or material leakage, improving equipment reliability.
Multiple discharge door options
Up to 3 optional additional discharge doors are available to meet the needs of concrete production of different sizes.
Quick cleaning
The equipment design allows for quick and thorough cleaning without the need for additional cleaning mechanisms, saving maintenance time.
Hydraulic door mechanism
The hydraulic door mechanism provides a powerful, controllable on/off action, ensuring precise control of concrete production.
Wear resistance
The design of the nickel-hard cast iron liner and mixing blades makes the equipment more wear-resistant and extends the service life of the equipment.
Parameters of AGICO’s twin shaft mixer
| Model | 100L | 150L | 250L | 330L | 500L | 750L | 1000L | 1250L | 1500L | 2000L | 2500L | 3000L | 4000L | 4500L |
| Discharge Capacity | 100L | 150L | 250L | 330L | 500L | 750L | 1000L | 1250L | 1500L | 2000L | 2500L | 3000L | 4000L | 4500L |
| Stirring rated power | 7.5 | 11 | 15 | 18.5 | 22 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 200 | 250 |
| Hydraulic discharge power | pneumatic/hydraulic | pneumatic/hydraulic | pneumatic/hydraulic | pneumatic/hydraulic | pneumatic/hydraulic | pneumatic/hydraulic | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Planetary/main mixer | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 3/2 | 3/2 | 3/2 | 3/2 | 3/2 |
| High speed auxiliary stirring number | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Side scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Increase hopper power | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 | 11 | 15 | 15 | 22 | 30 | 37 | – | – |

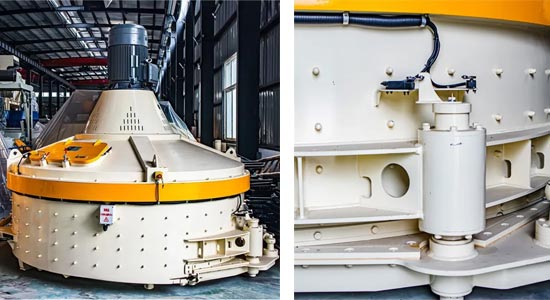

Details of AGICO’s planetary concrete mixer for sale
Five-layer sealing
The core part of the main machine – the four shaft ends, adopts five-layer sealing technology with advanced domestic and foreign technologies, and cooperates with high-precision professional end face processing equipment to improve the sealing effect of the shaft end of the mixing main machine and extend the service life of the seal.
360° non-dead-coner stirring
The stirring arm has a more complex and dense running track, 360° stirring without dead angles, and the material is stirred more fully. It has strong power, low noise, and reduces energy consumption while achieving stirring.

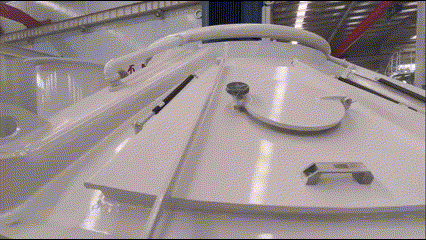

Observation port
The inspection door is equipped with a special sealing strip, which is reliable in sealing; the inspection door has a safety switch, and the main engine is powered off when it is switched on and off to ensure safe operation. There is an observation port on the inspection door, which is convenient for maintenance. You can observe the mixing of materials during normal operation without power failure.
Mixing system

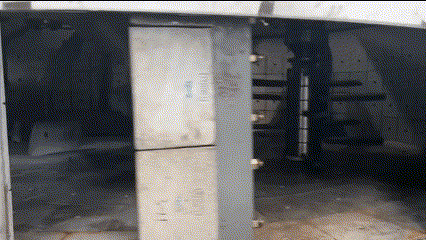

The mixing arm and its blades perform planetary motion, with continuous mixing trajectory, intense mixing motion and good homogeneity; the mixing blade angle is reasonable, the mixing efficiency is high, and the wear of the liner and blades is reduced; the bottom scraper cleans the bottom material, and the side scraper cleans the side material, with automatic cleaning function; the bottom scraper stirs and increases the unloading speed at the same time.
Discharging system
The unloading door can open 1 to 3 unloading doors according to the layout of the production line to meet different process requirements, and the unloading door is designed with a special sealing device, which is more reliable in sealing and has better environmental protection effect. The unloading door is opened from the side, and it is very convenient to inspect and clean.
Precision manufacturing
Sandblasting process: The tank body is sandblasted and shot blasted to eliminate the stress in the tank body and increase the service life.
Special tooling welding: The welding of the stirring tank body adopts a special combination tooling to ensure the regularity of the tank body.
CNC machining: Multiple CNC machining lathes ensure the machining quality of parts.
Specialized shaft end processing equipment
Introducing industry-leading large-scale professional precision processing equipment, the mixing tank body is clamped once, and all inner holes, inner and outer end faces and all threaded holes are processed, ensuring the geometric shape and position tolerance of the mixing tank body and the performance of the main machine.
Monitoring system
The monitoring system of the mixing main machine is mainly composed of monitors and sensing element main machine monitoring systems. The system monitors the oil temperature and oil level of the hydraulic pump and reducer in real time, and realizes Chinese information prompts and sound and light alarm prompts and alarm record storage through the monitor, so that users can find and handle faults in time.
Main features of planetary concrete mixer for sale
Planetary motion
The mixing arm moves in a planetary manner, covering the entire mixing barrel to ensure uniform mixing.
High efficiency
The planetary concrete mixer can mix concrete faster than traditional mixers, reducing mixing time and increasing productivity.
Uniform mixing
The complex movement of the mixing arm ensures that all components of the concrete are evenly distributed, resulting in a consistent mix.
Durability
The planetary mixer is composed of heavy-duty components that can withstand the rigors of continuous mixing and ensure a long service life.
Easy maintenance
Planetary concrete mixers are designed for easy cleaning and maintenance, with features such as large access doors and high-pressure cleaning devices.
Customization
Planetary concrete mixers can be customized to meet specific application needs, including different capacities and additional features such as moisture content testers.
What is a planetary concrete mixer?
A planetary concrete mixer is a highly efficient mixing equipment, characterized by the mixing blades revolving around the axis of the mixing drum while the blades themselves rotate, similar to the movement of planets around the sun. This mixing method can achieve full mixing of materials and ensure the uniformity of concrete, and is widely used in prefabricated components, construction projects, high-performance concrete and other fields.
Working principle of planetary concrete mixer
The principle of planetary concrete mixer is to achieve efficient mixing effect through the rotation and revolution of the stirring paddle. The stirring paddle not only rotates around its own axis (rotation), but also makes circular motion along the inner wall of the mixing container (revolution). This dual motion mode allows the material to perform complex mixing motion in the container, forming an efficient mixing effect.

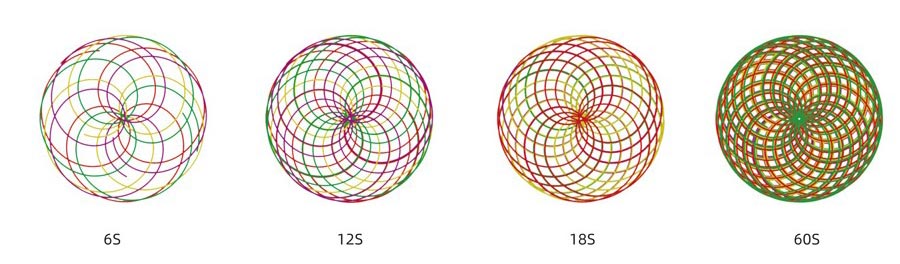

The following pictures show the stirring motion of the planetary mixer from 6 seconds to 60 seconds after feeding. The stirring planet can completely cover the bottom plate of the mixing tank once every four revolutions (6 seconds), without any dead corners.
Difference between planetary concrete mixer and traditional mixer
Different motion mode: Traditional mixers usually only have rotation motion, while planetary concrete mixers not only have rotation but also revolution motion, which allows the material to perform complex cyclic motion in the mixing container, forming a more uniform mixing.
Different mixing effect: When traditional mixers handle large volumes or high-viscosity materials, it is easy to cause material stratification or uneven mixing. The planetary concrete mixer, through the combination of rotation and revolution, can apply multi-directional and multi-level shearing and kneading effects to the material, ensuring that every part of the material can be fully mixed, thereby achieving a higher degree of mixing uniformity.
Different scope of application: Traditional mixers are suitable for low-viscosity, easy-to-mix materials. Planetary concrete mixers are suitable for high-viscosity and high-density materials, and perform particularly well in industries that require fine mixing.
What is the main difference between a planetary concrete mixer and a spiral mixer?
The main feature of a planetary concrete mixer is the revolution and rotation of its mixing blades, which allows the materials to be mixed more evenly, and is suitable for high-viscosity and high-precision mixing needs. A spiral mixer (usually a twin-shaft mixer or a single-shaft spiral mixer) relies on the spiral motion of the blades to push and stir the materials, which is suitable for mass production and has high production efficiency, while a planetary concrete mixer is relatively better in mixing uniformity.
What are the three types of concrete mixers?

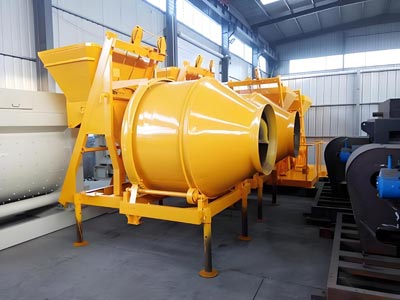

Drum Mixers (Reversing Drum Mixers)
These are the most common type of concrete mixers. They have a large rotating drum that mixes the ingredients. The drum can tilt to discharge the mixed concrete. They are often used for large-scale projects.
Planetary Mixers
Planetary mixers feature a central rotating shaft with mixing blades that orbit around the shaft while also rotating on their own axis. This dual motion ensures thorough and homogeneous mixing, making them ideal for high-quality concrete, especially in applications requiring precise consistency, such as precast concrete or decorative elements.
These mixers have two horizontal shafts with blades that rotate in opposite directions, ensuring thorough and fast mixing. They are ideal for high-performance concrete and large-volume production.

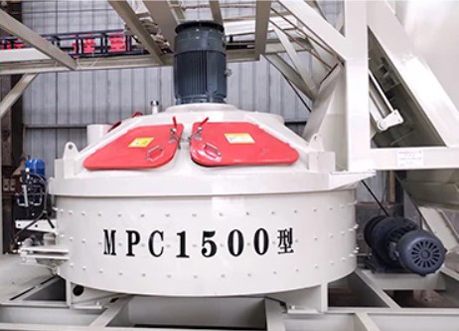

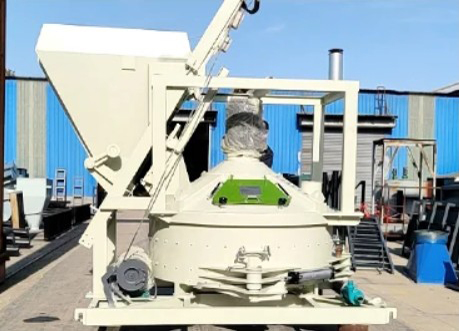

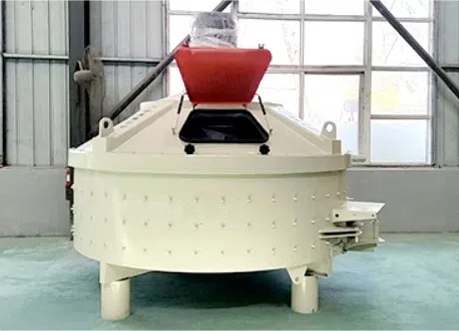

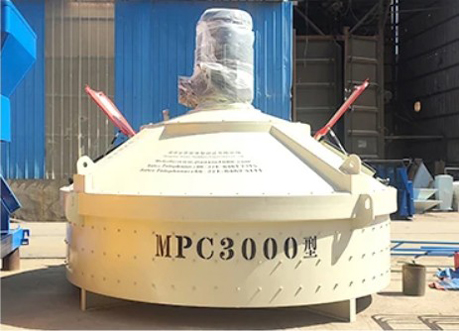

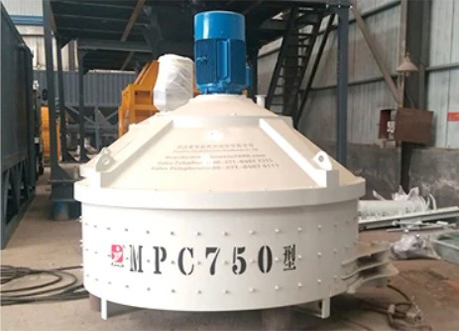

Final product of our planetary mixer for sale
