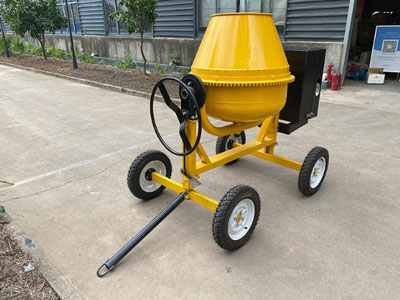

Why you need a tilt drum mixer
The discharge speed is fast and the residue is small. The concrete can be completely discharged along the inclined drum, reducing the waste of adhesion inside the drum.
The structure is relatively simple, operation is convenient, and maintenance costs are low, making it suitable for use in small and medium-sized engineering sites.
It has good uniformity in stirring and is suitable for the mixing requirements of various materials such as ordinary concrete and mortar.

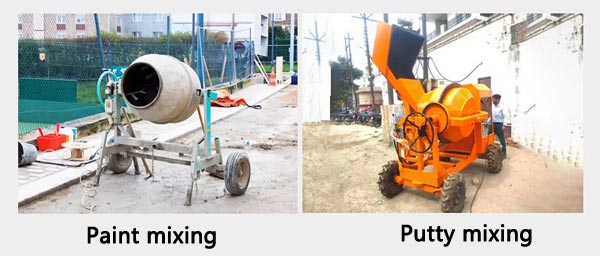

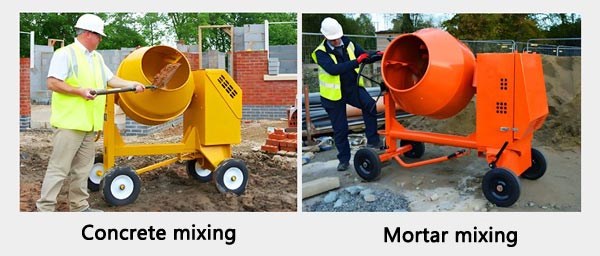

Applicable scenarios of the drum concrete mixer
Small and medium-sized construction projects, such as the construction of civilian houses and small-scale foundation construction.
Batch mixing operations at construction sites are particularly suitable for scenarios where there are requirements for material discharge efficiency.
Construction scenarios with high mobility such as road repair and small-scale municipal projects.
Cast iron gear ring ensuring long-lasting service life

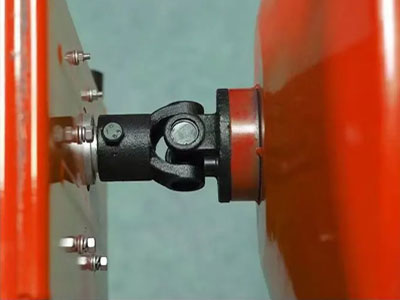

Upgrade the universal connecting shaft for more stable operation

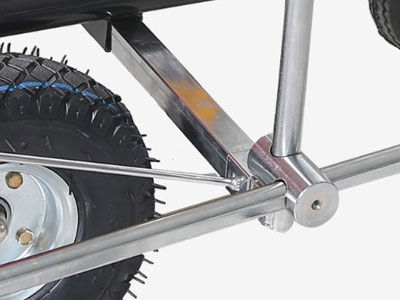

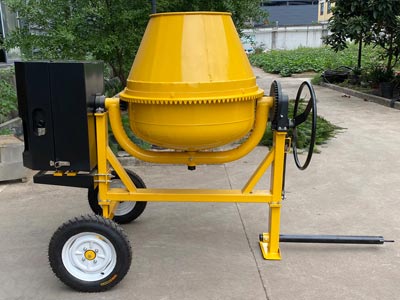

Thickened frame for enhanced sturdiness and durability
Parameters of tilt drum mixer
AGICO Cement provides drum concrete mixer from 60L to 800L capacity, we also provides other concrete mixer such as twin shaft concrete mixer, planetary mixer, pan mixer, self loading mixer.
| Item | 200 Model | 350 Model | 500 Model | 750 Model |
| Model | 200 Model | 350 Model | 500 Model | 750 Model |
| Weight | 65KG (Net)/62KG (Gross) | 300KG | 370KG | 620KG |
| Power Option | Diesel/Gasoline/Electric Motor | Diesel/Gasoline/Electric Motor | Diesel/Gasoline/Electric Motor | Diesel/Gasoline/Electric Motor |
| Drum Capacity | 200L | 300L | 500L | 750L |
| Overall Dimension | 12007201370MM | 196011001100MM | 210012001700MM | 220015001950MM |
Thickened steel, durable
Great stirring quality
Strong performance and high efficiency
Detailed advantages of AGICO’s tilting drum concrete mixer
Flexible adaptation to meet diverse needs
We offer a variety of specifications and models, from the 200L mini model (suitable for home decoration and minor repairs) to the 800L large model (suitable for infrastructure projects), supporting dual power options of electric and diesel. Some models can be equipped with an automatic feeding hopper and weighing batching system.
Support customized services: The drum inclination angle, blade structure, and control systemcan be adjusted according to customer needs, and it is suitable for the mixing of special materials.
High-efficiency stirring ensures better uniformity
The drum is equipped with optimized spiral blades and anti-sticking scrapers inside, and is precisely controlled at a rotational speed of 18-22r/min. The materials are thoroughly mixed in the three-dimensional movement of “lifting – falling – shearing”, and the uniformity of the concrete reaches over 95%, meeting the mixing requirements of concrete of different strength grades from C15 to C50.
Compared with ordinary mixers, the mixing time is shortened by 15% to 20%, and the fastest single mixing cycle is only 3 minutes, making it suitable for batch construction scenarios.
Tipping discharge, low residue and high efficiency
It adopts a hydraulic/mechanical dual drive tilting system. The drum can be precisely adjusted from 0 to 45°. The discharging speed is 30% faster than that of the bottom discharging model, and the single discharging time is ≤20 seconds.
The inner wall of the drum is treated with a wear-resistant coating, with a material residue rate of less than 1%, reducing cleaning time and lowering material waste.
Stable and durable, suitable for complex task
The key components are made of high-strength steel. The mixing drum is made of Q345 manganese steel, and the blades are made of wear-resistant alloy, which is impact-resistant and wear-resistant. The service life of the equipment can reach 8 to 10 years.
Equipped with intelligent overload protection, voltage stabilization device and dust-proof sealing design, it can adapt to complex outdoor construction environments such as high temperature, dust and humidity, with a failure rate as low as 1.2% per year.
Choose drum mixer machine supplier with 40+ years experience
Cutting-Edge Technology
Leverage state-of-the-art technology to guarantee exceptional product performance.
Rigorous Quality Assurance
Implement strict quality control measures to deliver premium-quality products.
End-to-End Service Support
Offer comprehensive after-sales service to address all customer concerns and ensure peace of mind.
What is tilt drum mixer?
The core feature of the tilt drum mixer is that the stirring drum can be tilted around the axis, and the concrete discharge is achieved by tilting the drum.
The drum is usually installed horizontally or slightly inclined. During stirring, it maintains a fixed Angle. When discharging, the drum is inclined at a certain Angle (typically 30°-45°) through mechanical or hydraulic devices.
It is equipped with spiral blades or lifting plates inside. When rotating, they drive the materials to roll and mix. When tipping, the gravity is utilized to make the well-mixed concrete flow out quickly.
How to choose the tilting drum concrete mixer based on needs and price
The prices of tilting concrete Mixers vary greatly, mainly depending on the equipment capacity, power type, configuration functions and applicable scenarios. From household mini types to large-scale engineering equipment, the price range is from several hundred yuan to several hundred thousand yuan. The following is a detailed price classification based on common models and market conditions:
Mini household/small construction and repair tilting mixer machine
The capacity of this type of tilt drum mixer is mostly between 60 and 230 liters. It is mainly electric and suitable for scenarios such as home decoration and minor repairs, with a low price. For instance, the international market price of the 160L/230L specification electric tilting drum mixer is between 310 and 410 US dollars.
Commonly used tilting type concrete mixer for small and medium-sized projects
The capacity is concentrated between 350 and 500 liters, making it the mainstream model for civilian house construction and small construction sites. It offers multiple power options such as electric and diesel, with a moderate price. Like the classic JZC350 tilt drum mixer, the international market price is in the range of 1,400 to 4,100 US dollars. The international market price of the 500L diesel-powered model is mostly between 750 and 3,900 US dollars.

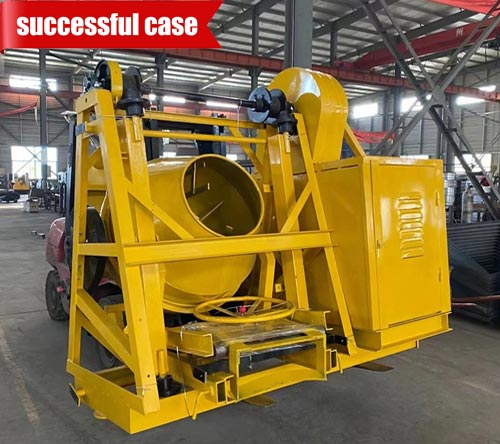

Tilting drum mixers specifically designed for large-scale projects
With a capacity exceeding 800L, it is mostly equipped with advanced configurations such as hydraulic systems and automatic feeding, suitable for large-scale construction, road construction and other scenarios, but the price is relatively high. For example, the 1000 capacity hydraulic fully automatic tilt drum mixer. In the international market, the price of such large-sized or high-end models is generally between 12,000 and 25,000 US dollars. The price of some equipment with complex functions such as automatic feeding is even close to 25,000 US dollars.
