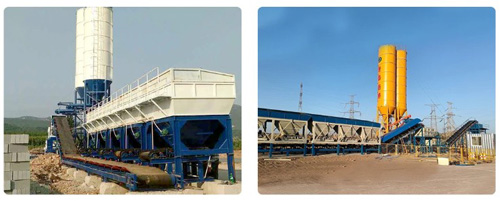

Stabilized soil mixing plant from AGICO
Unique sealing shaft end design, anti-jamming, anti-leakage material, material door can realize single and double opening.
Control system specially developed for stabilized soil workers, accurate measurement, high degree of automation.
Alloy material module structure, material applicability, easy to replace.
Patented design of powder transition bin makes the metering more accurate.
High power motor coupling reducer drive, high output.
Why choose AGICO’s mixer plant for stabilized soil
Manufacturing Experience
40+ years
Patents
160+
Exported nations
170+
Certificates
ISO9001, ISO 14001, CE
Excellent mixing performance
Adopting the internationally leading linerless double-horizontal shaft structure design, it has excellent mixing capacity and mixing uniformity.
The extended mixer can efficiently process various types of stabilized soil and stabilized sand materials.
The innovatively designed flexible variable flow discharging system intelligently balances production efficiency and finished product uniformity, significantly improving the overall performance of the equipment.
Convenient maintenance design
The whole machine is equipped with a visual maintenance platform, and sufficient operating space is reserved for each maintenance point to ensure convenient and efficient inspection and maintenance. The patented shaft end bearing and sealing technology are adopted to greatly improve the operating reliability of the equipment.
Key components (control system and cement system) are all made of international first-line brands and domestic high-quality components, which effectively reduces the failure rate.
Modern industrial design
Implementing the concept of ergonomics, functional aesthetics are integrated into the overall design.
The layout of the whole machine is scientific and reasonable, the color coordination is pleasing to the eye, and it shows professional industrial aesthetics.
The precision metering system consists of high-precision sensors and industrial computers, which have the characteristics of strong anti-interference and stable operation, and realizes accurate real-time metering control.
Intelligent operation experience
Fully automatic/semi-automatic/manual design, and the operation interface is intuitive and friendly, easy to master. The weighing system is easy to calibrate without complicated parameter settings. It is equipped with an intelligent human-computer interaction system and supports data storage and report printing functions.
Adopting an innovative unitized design concept, the mixing machine, aggregate conveying system, cement supply system and other modules can be flexibly combined to meet diverse production needs.
AGICO Group has more than 40 years of experience in the development and production of dry mix mortar plant, asphalt batching plant and other concrete batching plants. AGICO’s pursuit is high quality and strict factory inspection of products. All products of the Group have passed ISO9001:2008 international quality management system certification, EU CE certification and Customs Union CU-TR certification.
Core system components of stabilized soil mixing plant
stabilized soil mixing plant can mix gravel stabilized soil, grey soil stabilized soil, adapted to highways, class I highways, class II highways, city roads, airports, sports fields and other grass-roots materials construction, can use quicklime, slaked lime (moisture content of 10-15%), soil, sand, gravel, fly ash, cement and other raw materials, the production of grey soil stabilized soil base material, cement stabilized gravel, compressible concrete and other base materials.

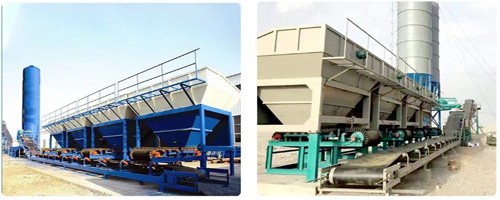

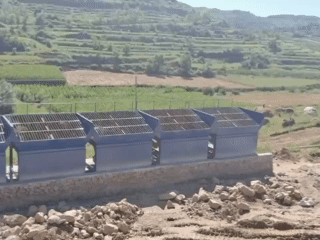

Aggregate bin system
Modular combined silos are used to flexibly adapt to different grading requirements, store aggregates such as soil, sand, and gravel, and achieve high-precision batching through electronic weighing or volumetric metering devices (belt scales/metering buckets), and the proportions can be adjusted quickly.
Learn More

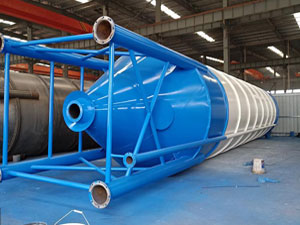

Powder storage and metering system
Equipped with 30-500 tons of cement silos (optional), store cement, lime and other cementitious materials, and accurately add them through screw conveyors and intelligent metering systems.
Learn More
Mixer
Adopts a twin-shaft continuous linerless mixer, which mixes evenly and efficiently, is easy to maintain, and has a productivity of up to 500 tons/hour. We also provides single shaft mixer and planetary mixer.
Learn More

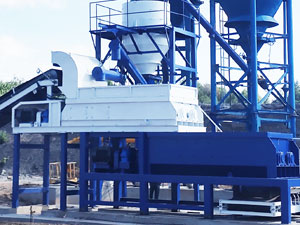

Water supply system
Dual-chain buckets with alloy steel+welded edges last 3x longer. Smart weigh bins feature auto-gates and level/temp sensors. Overflow channels prevent blockages.

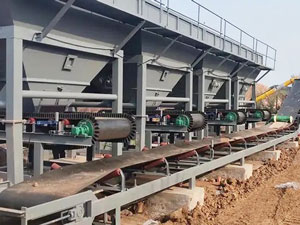

Conveying system
Adopts seamless vulcanized joint ring belt or large-angle corrugated sidewall belt, which has a compact structure, stable operation, anti-deviation and long service life.
Learn More
Control system
Integrated computer automation management, supports manual/automatic mode switching, achieves stepless speed change through variable frequency speed regulation or electromagnetic speed regulation, saves energy and reduces consumption; monitors production data in real time, is easy to operate and has high reliability.
Parameters of soil cement mixing plant
| Model | 300 | 300-1 | 400 | 500 | 600 | 700 | 800 |
| Capacity | 300 t/h | 300 t/h | 400 t/h | 500 t/h | 600 t/h | 700 t/h | 800 t/h |
| Aggregate Size | ≤60 mm | ≤60 mm | ≤60 mm | ≤60 mm | ≤60 mm | ≤60 mm | ≤60 mm |
| Aggregate Bin Volume | 1×9 m³ + 2×5 m³ | 3×6 m³ | 4×6 m³ | 4×10 m³ | 4×12 m³ | 4×13 m³ | 4×15 m³ |
| Finished Material Bin | 1.2 m³ | 6 m³ | 6 m³ | 8 m³ | 10 m³ | 12 m³ | 15 m³ |
| Aggregate Weighing Accuracy | Cumulative Weighing | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Powder Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Water Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Mixer Speed | 93 r/min | 93 r/min | 93 r/min | 117 r/min | 117 r/min | 117 r/min | 115 r/min |
| Total Power | 50 kW | 60 kW | 75 kW | 100 kW | 140 kW | 186 kW | 210 kW |
| Mixer Power | 37 kW | 37 kW | 45 kW | 55 kW | 90 kW | 110 kW | 110 kW |
| Total Weight | 14,400 kg | 32,000 kg | 39,000 kg | 44,000 kg | 47,000 kg | 52,000 kg | 61,000 kg |
Customize your concrete batch mixing plant
The key components of AGICO Cement’s concrete plant are all well-known brands at home and abroad, such as high-precision sensors, high-efficiency vibrators, automation control system and so on, to ensure the stable and reliable performance of the plant. The advanced equipment not only improves the production efficiency, but also reduces the failure rate and ensures the continuity and stability of production.
Advantages of AGICO CEMENT’s stabilized soil mixing plant
1. Flexible and maneuverable.
The stabilized soil mixing plant adopts an overall modular design, with a reasonable and compact structure, quick installation and convenient transfer;
2. Accurate and stable measurement.
The aggregate measurement of the stabilized soil mixing plant adopts a “belt scale” and the cement adopts a “screw reduction scale”, which is stable, reliable and accurate.
3. Easy to operate.
The material ratio control of the stabilized soil mixing plant adopts “frequency conversion speed control technology”, which is more stable and more convenient for computer control and management than “slip electromagnetic speed regulation”.
4. High and stable production efficiency.
The stabilized soil mixing plant adopts a forced heavy-duty linerless mixer, which can achieve high-speed mixing, so that the materials are boiling and interpenetrating during the mixing process, which greatly improves the uniformity of mixing, has higher reliability and lower maintenance costs.
5. Wider scope of application.
The stabilized soil mixing plant has batching machines that can adapt to different working conditions. In addition to the standard configuration, there are also batching machines with forced arch breaking devices for selection, which are used for feeding materials that are easy to form arches (wet fly ash, soil, sand particles).
The difference between a stabilized soil mixing plant and a concrete mixing plant
- The finished concrete products produced by a stabilized soil mixing plant are mainly used in the construction of transportation engineering projects such as roads, railways, and airports, while the finished concrete products produced by a concrete mixing plant are mainly used in the construction of various engineering buildings.
- The finished product requirements of a concrete mixing plant are higher than those of a stabilized soil mixing plant.
- The main machines used are different. The stabilized soil mixing plant uses a twin-horizontal continuous linerless mixing main machine, while the concrete mixing plant often uses a JS twin-horizontal forced mixer and an mp series vertical axis planetary mixer as the main machine, which has a stronger, more uniform and more ideal mixing effect.
- Since the proportion of cement required for stabilized soil production is relatively small, the number of cement tanks in the stabilized soil mixing plant equipment is very small, and often only one or two are enough. A concrete mixing plant generally requires three or four cement silos.
- The metering method of a stabilized soil mixing plant is usually dynamic metering, while a concrete mixing plant is produced using a static metering method.
